How much do you know about the equipment in a craft brewery? Below I would be more than happy to introduce you some details about the brewhouse of Tiantai Brewery Equipment.
Large-Sized Glass Manhole
Below is a large-sized glass manhole, which can easily enter and exit the tank, using strengthened glass raw material, stainless steel locking handle, and can customize the brewery LOGO.
Standard Rake

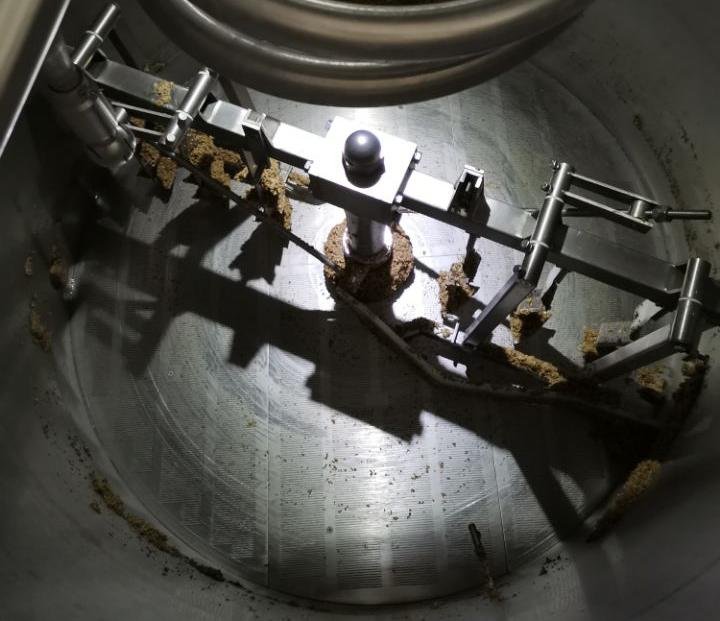

Below is the Standard Rake, which can be top-mounted or bottom-mounted with adjustable RPM. You can see the chain in the picture, it is a chain type pullable scraper, making spent grain easier to get out. The rake arm distance is calculated by diameter of the grain bed for even tillage.
Sparging System

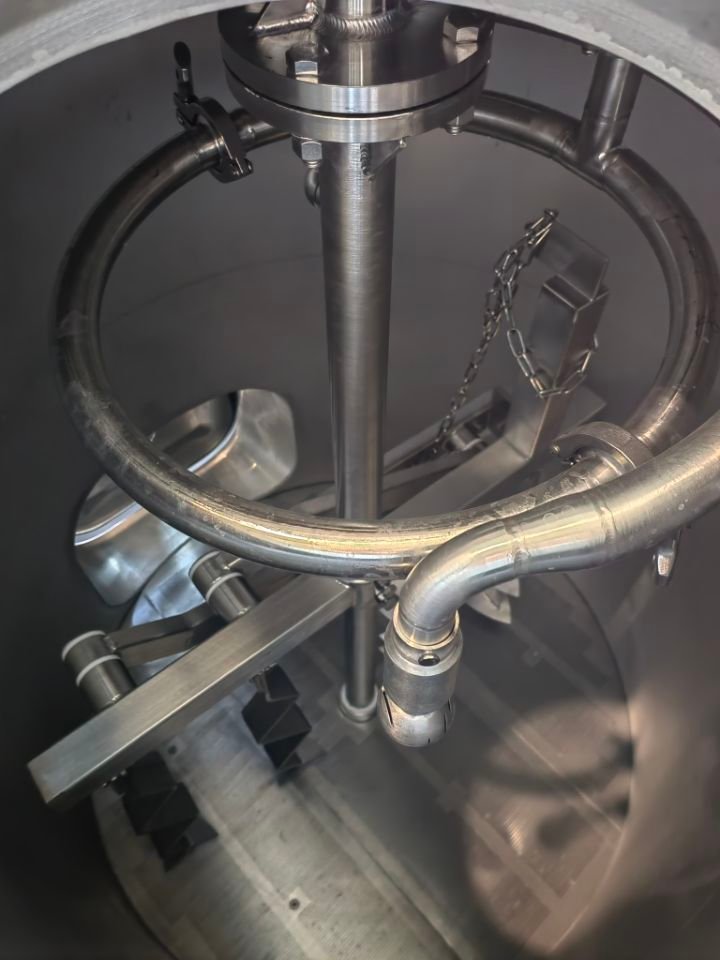

Below is the sparging cycle, which is formed by bending stainless steel tubes in one pass without welds and dead ends. Drill holes or nozzles at multiple angles when making, so that the sparging is finer. And the sprayed water fully covered the bad layer.
Side-Mounted Spent Grain Door

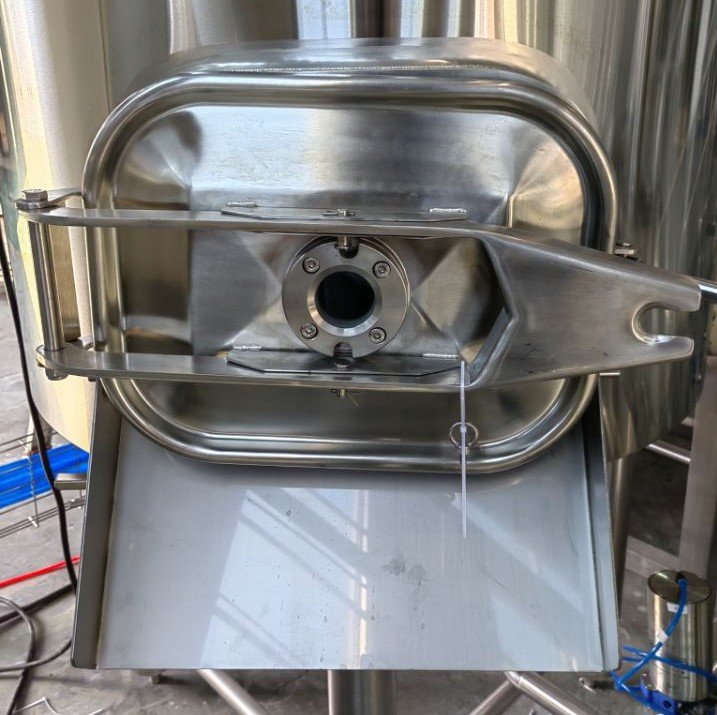

Below is a large side mounted spent grain door. It can be seen from the picture with a small glass sight glass for easy observation. And the outlet guide plate is detachable.
Wort Grant
Below is the Wort Grant, the wort is naturally filtered without negative pressure; The barrel is made of glass, which is convenient for observing the brightness of the wort; The CIP cleaning ball is installed inside, which is easy to clean and does not need to be disassembled; And the liquid level can be seen to adjust the filtration speed.
Complete Brewery Equipment Solutions from Tiantai
Every detail of a brewhouse can have an impact on the brewing process, from the design of the manway and rake system to the sparging system, spent grain outlet, and wort grant. Tiantai focuses on practical and hygienic equipment design to make daily brewing operations easier and more efficient.
If you are planning to brew commercially or start your own brewery, Tiantai can provide a complete brewing solution based on your production capacity, brewing process, available space, and specific requirements.
We supply 2ā150HL complete beer brewing equipment, including malt milling systems, brewhouses, beer fermenters, fermentation tanks, bright beer tanks, beer filling machines, canning machines, kegging machines, hopping machines, yeast propagation systems, and other brewery equipment.
In addition to the main brewing system, we can also provide auxiliary systems such as steam heating systems, process pipelines and valves, water treatment systems, filtration systems, air compressors, glycol cooling systems, CIP systems, and control systems.
From process consultation and equipment design to manufacturing, transportation, installation, and after-sales service, our experienced team can support your brewery project from start to finish.
If you have a brewery project in mind or would like to learn more about our equipment, feel free to contact Tiantai and tell us about your brewing requirements.
