Bright Beer Tank (BBT), also called beer maturing tank or storage tank, is essential for every craft brewery. After fermentation is finished, beer needs cooling, clarification, carbonation, pressure holding and stable storage before bottling or kegging. All BBT tanks are pressure vessels with cooling jackets and full CIP cleaning systems.
There are three common types of bright beer tanks in Tiantai: vertical BBT, horizontal BBT, and stacked BBT. Each type has different advantages and suitable factory conditions. Choosing the right tank style helps breweries save space, reduce cost and improve beer quality.
Bright Beer Tank Features by Tiantai:
- Made by 304/316L SS, TIG automatically welded
- Design comply with requirements of GB/PED/ASME
- Polished to 0.4 microns, 360 degree cleaning without dead corner
- Dished top and bottom for CO2 pressured
- Cooled by jackets on side wall, temperature auto controlled
- Carbonation stone and fittings for evenly dissolved
- Pressure adjustable, suitable for various liquid
- Stackable design available for saving area
- Copper cladding, various colors painting abailable

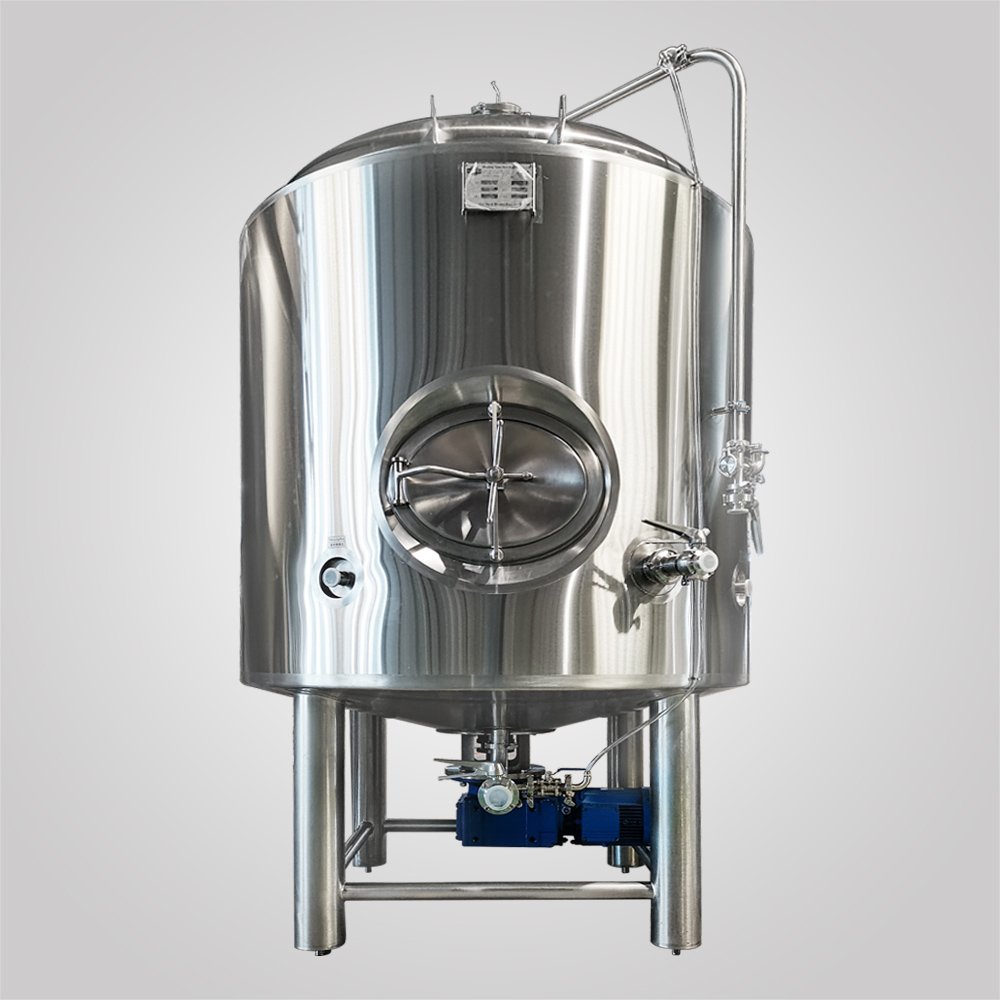

1.Vertical Bright Beer Tank
Vertical BBT is the most popular and standard design for craft breweries. The tank stands upright with dish top and dish bottom, supported by vertical legs.
Advantages
-
Small floor space: It saves ground area and fits most standard breweries.
-
Easy cleaning: Simple internal structure with no dead corners, ensuring perfect CIP cleaning effect.
-
Lower cost & easy maintenance: Mature design, standard accessories and simple daily operation.
Disadvantages
-
Higher overall height, requiring sufficient workshop ceiling height.
-
Large-capacity vertical tanks need working platforms for operation.
Best Application
Small and medium breweries, taprooms, breweries with limited floor area and standard ceiling height.
2. Horizontal Bright Beer Tank
Horizontal BBT is placed horizontally with two dish heads and saddle support. It is widely used in European traditional breweries and large industrial factories.
Advantages
-
Low height: Perfect for old factories or low-ceiling workshops.
-
Better clarification effect: Larger horizontal settling area makes beer clearer and matures faster.
-
Stable yeast sedimentation: Yeast settles evenly at the bottom, making draining and cleaning easier.
-
High stability: Low center of gravity, safe and stable during long-term pressure storage.
Disadvantages
-
The same capacity requires much larger floor space.
-
Higher requirements for CIP spraying design to avoid cleaning dead zones.
-
Slightly higher price than vertical tanks.
Best Application
Old factory renovation, large commercial breweries, and projects that pursue fast beer clarification and stable flavor.

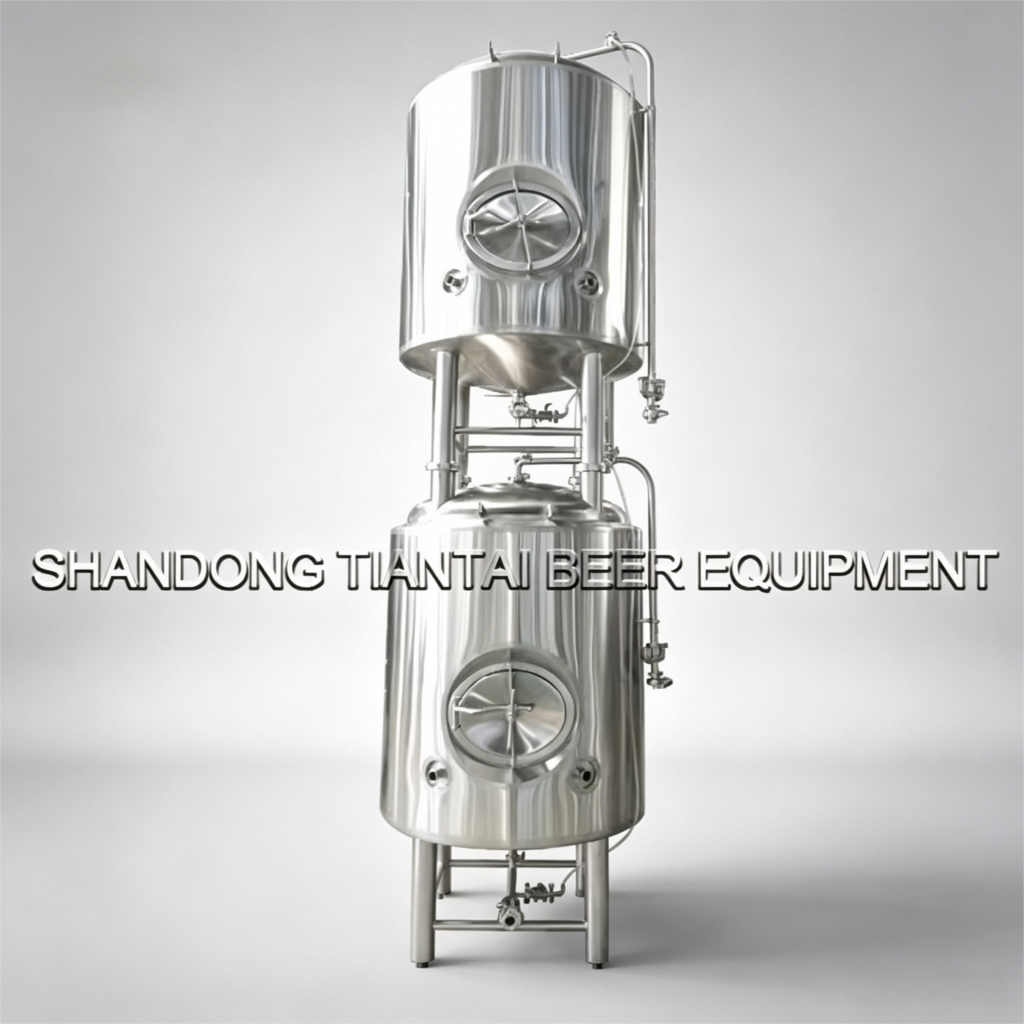

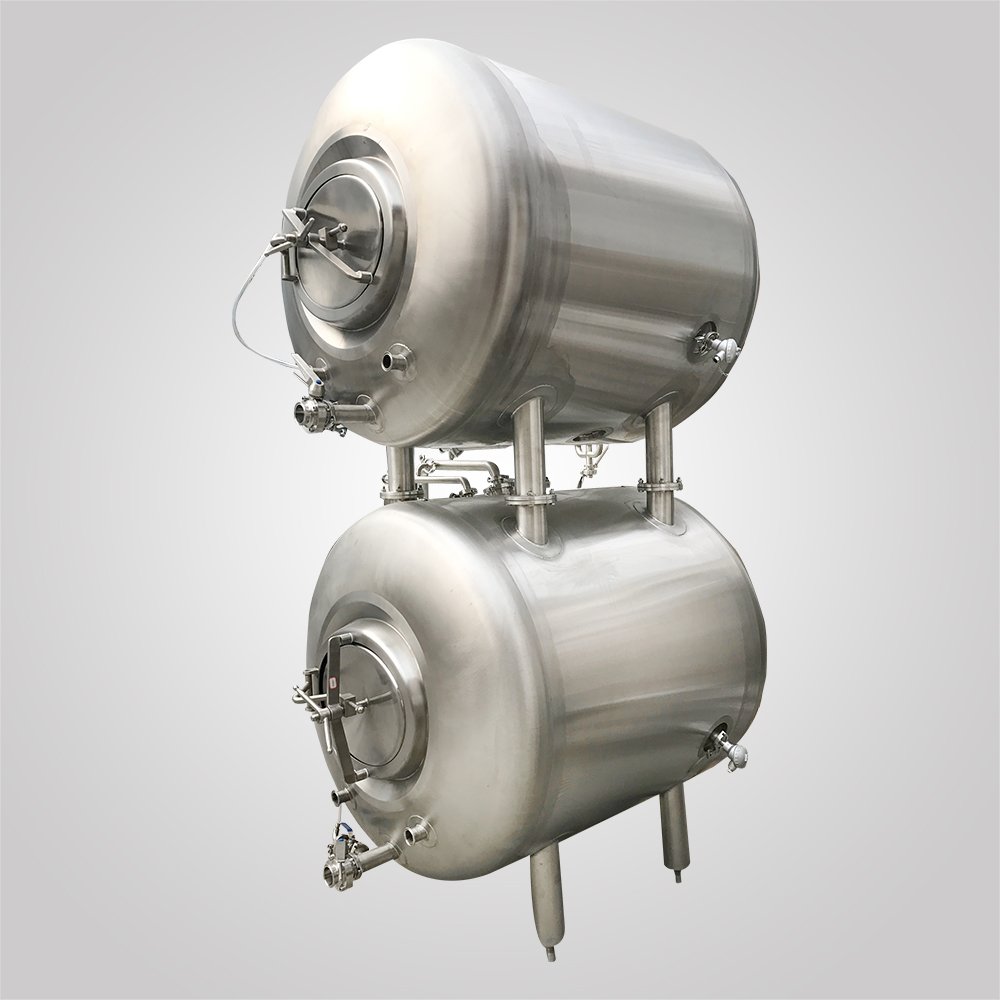

3. Stacked Bright Beer Tank
Stacked BBT is usually based on horizontal tank design, stacked 2 to 3 layers on customized steel frames. Some breweries use mixed stacking: fermentation tank below and bright beer tank above. It is the best space-saving solution for crowded urban breweries.
Advantages
-
Max space utilization: Double or triple storage capacity on the same floor area.
-
No high ceiling requirement: Each single tank is low, only using vertical space.
-
Easy expansion: Add more tanks on the frame without expanding the workshop.
Disadvantages
-
Reinforced ground and professional steel frame support are required.
-
Upper tanks need simple working platforms for valve operation and sampling.
-
More complex pipeline layout, requiring professional sanitary design.
-
Highest overall investment cost among the three types.
Best Application
Urban craft breweries, taprooms, factory renovation projects, and breweries with limited floor space but need high storage capacity.
4. BBT Type Comparison Table
|
Item
|
Vertical BBT
|
Horizontal BBT
|
Stacked BBT
|
|---|---|---|---|
|
Floor Space
|
Small
|
Large
|
Minimal
|
|
Ceiling Requirement
|
High
|
Low
|
Medium
|
|
Beer Clarification
|
Good
|
Excellent
|
Good
|
|
Cleaning Difficulty
|
Easy
|
Medium
|
Slightly Hard
|
|
Cost Level
|
Lowest
|
Medium
|
Highest
|
5. Conclusion
Vertical, horizontal and stacked bright beer tanks serve the same storage and conditioning purpose but fit different factory conditions. Vertical tanks are cost-effective and standard for most small breweries. Horizontal tanks provide better clarification for large-scale production. Stacked tanks maximize space efficiency for urban and limited-space projects. Choosing the correct BBT configuration according to your workshop size, ceiling height and production plan will greatly improve your brewing efficiency and beer stability.
