When purchasing craft beer, fruit wine and kombucha fermentation tanks, you will notice most medium-sized and small brewing vessels are equipped with dimple plate cooling jackets (also known as pillow plate jackets) instead of half-pipe jackets or traditional full annular jackets. Many startup brewers wonder why dimple plate becomes the mainstream cooling structure for fermentation tanks. Based on years of manufacturing and export experience, we explain the working principle, core advantages, applicable scenarios and limitations of dimple plate jackets, helping you make rational equipment selection.

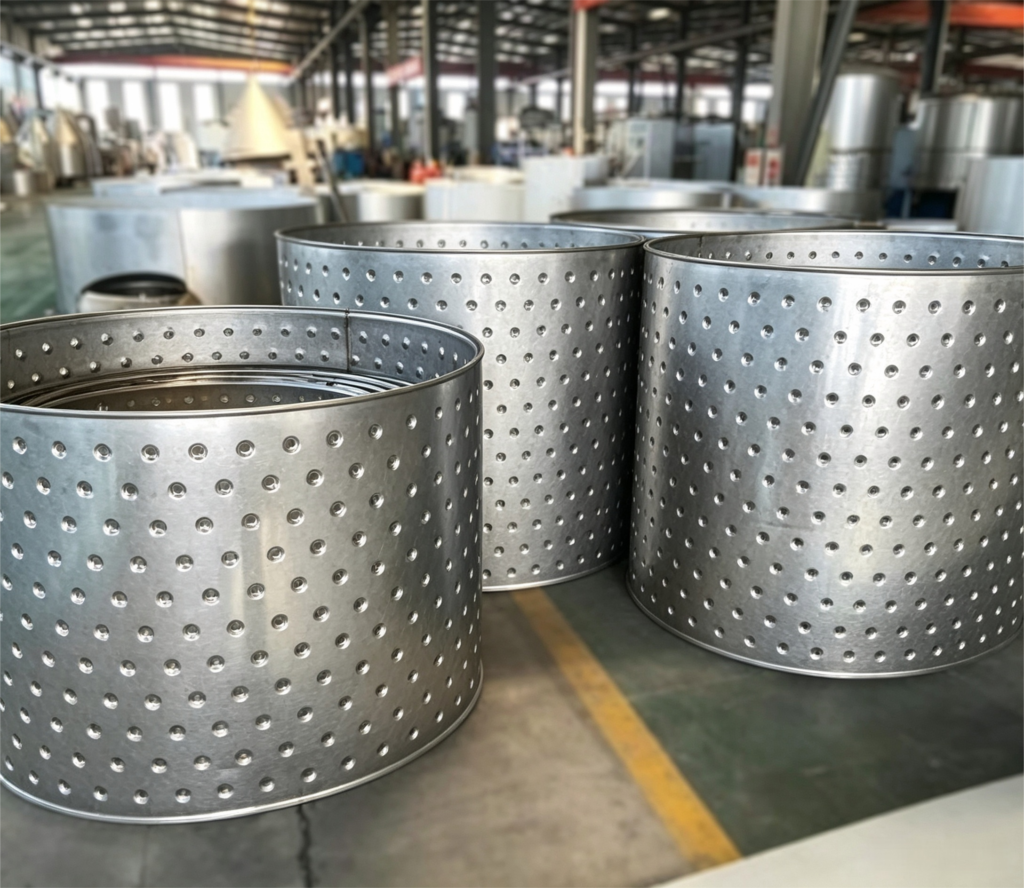

What Is Dimple Plate Cooling Jacket
The dimple plate jacket is composed of a stamped stainless steel sheet densely covered with concave dimples. The plate is spot-welded onto the outer wall of fermentation tanks. Glycol coolant flows in the narrow channels between the dimple plate and tank shell to complete heat exchange. The regular arrangement of dimples disrupts fluid flow and creates continuous turbulence. Compared with ordinary jackets, it delivers obvious advantages for temperature control of fermentation.
Core Advantages of Dimple Plate for Fermentation Tanks
1. Turbulent Flow Improves Heat Transfer Efficiency
In traditional full jackets, glycol flows slowly and easily forms laminar flow, resulting in low heat exchange efficiency. The regularly distributed dimples constantly change the flow direction of glycol, generating stable turbulence. The heat transfer coefficient rises significantly, enabling faster cooling and crash cooling during fermentation. Brewers can realize precise temperature control and avoid overheating during vigorous yeast fermentation.
2. Uniform Cooling, Eliminating Hot Spots
Dimple plate can cover the side wall and cone bottom of fermentation tanks continuously. The cooling medium spreads evenly over the entire covered surface. Unlike half-pipe jackets where gaps exist between adjacent pipes, dimple plate achieves seamless cooling coverage. It effectively prevents local hot spots inside the tank, guarantees consistent fermentation environment and stable beer flavor batch by batch.
3. Lightweight Structure & Lower Manufacturing Cost
Dimple plate adopts thin stainless steel sheet with dense spot welding points. The welding nodes connect the outer plate and tank body into an integrated structure, which strengthens the tank rigidity. Under the same cooling area, the material consumption and processing cost of dimple plate are far lower than half-pipe jackets. It is the most cost-effective solution for craft brewery fermentation tanks below 10,000L.
4. Less Glycol Volume, Saving Operating Energy
The internal flow channel of dimple plate is narrow. It requires less glycol to fill the jacket system. The glycol chiller does not need to circulate a large amount of coolant, reducing pump load and long-term power consumption. This is a prominent benefit for small and medium-sized breweries running continuous fermentation.
Dimple Plate VS Half-Pipe Jacket Quick Comparison
Dimple Plate Jacket (Mainstream for Craft Fermenters) Uniform full-surface cooling, high heat exchange efficiency, low manufacturing cost, lightweight, fit for low & medium pressure fermentation tanks.

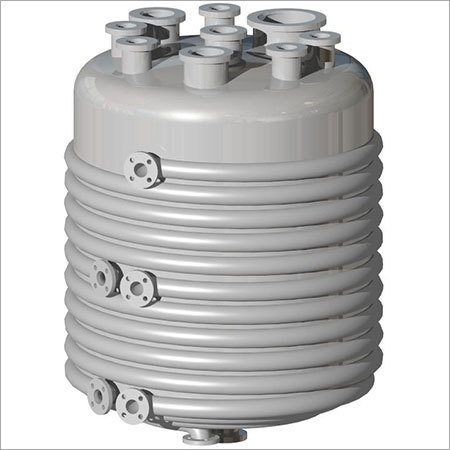

Half-Pipe Jacket Higher pressure resistance, but higher cost; cooling exists blind zones between pipes, widely used for large industrial high-pressure tanks.
Suitable Application Scenarios for Dimple Plate
Recommended to select dimple plate cooling jackets if you meet the following conditions:
- Craft breweries, brewpubs with fermentation tanks from 500L to 10,000L
- Production of craft beer, fruit wine, cider and kombucha
- Need fast crash cooling and stable fermentation temperature control
- Budget-sensitive projects pursuing balanced performance and cost
Limitations You Need to Know
Dimple plate cannot withstand ultra-high jacket pressure. If the project requires high working pressure above 10 bar, half-pipe jackets will be a better option. In addition, regular glycol filtration is required to avoid sediment accumulation inside the dimple channels.
Final Note
Dimple plate cooling jackets strike a perfect balance between cooling performance, manufacturing cost and energy consumption, which makes it the preferred cooling structure for most craft fermentation tanks.
