Why Brewery Tanks Need Hydraulic Shock Pressure Gauges
Fermenters and bright beer tanks operate as sealed pressure vessels. Tank pressure fluctuates constantly throughout the full brewing cycle. Yeast metabolism produces CO₂ and gradually lifts tank pressure during fermentation. Pressure shifts also occur during beer cooling, CIP cleaning and pressurized beer transfer. Meanwhile, running pumps and rotating equipment create continuous vibration inside the brewery workshop.
Ordinary pressure gauges have delicate internal mechanisms. Workshop vibration causes violent pointer shaking and inaccurate readings. Long-term vibration may damage the internal movement, shorten service life and generate misleading pressure data, resulting in unstable brewing processes and hidden safety hazards. Hydraulic shock pressure gauges are filled with damping liquid to absorb vibration and hydraulic shock, stabilizing the pointer. Operators can get steady, clear readings even under vibrating conditions. That makes them standard monitoring instruments for fermenters and bright beer tanks.
Main Functions of Hydraulic Shock Pressure Gauges on Fermenters
Process Control for Pressure Fermentation and Natural Carbonation
When fermenters work with Spunding valves for pressure fermentation, brewers need real tank pressure readings to set and verify the preset pressure of Spunding valves.
Operators can track the whole CO₂ generation process by checking gauge readings. Tank pressure rises slowly in the early fermentation stage and remains stable at the target value in the late fermentation period. Abnormally high pressure indicates the Spunding valve fails to vent excess gas. Continuous pressure drop suggests leakage on valves, gaskets or pipelines. Reliable pressure readings directly control beer carbonation level and guarantee consistent bubbles and flavor from batch to batch.
Safety Warning for Abnormal Pressure
The pressure gauge acts as a direct visual window for tank pressure and cooperates with PVRV safety valves.
If tank pressure rises rapidly, operators can detect the risk before the PVRV opens and take manual intervention to avoid overpressure accidents. A fast pressure drop means leakage on the tank or sealing components, which will cause beer oxidation and CO₂ loss. Immediate inspection is required to protect the beer batch.
Functions of Hydraulic Shock Pressure Gauges on Bright Beer Tanks
Bright beer tanks store conditioned finished beer. Stable low pressure must be maintained during storage to prevent oxidation and preserve dissolved carbon dioxide.
- Pressure control for beer storage: Gauges continuously monitor tank pressure. Brewers top up CO₂ when pressure is insufficient or release extra pressure when pressure is too high, maintaining consistent carbonation of finished beer.
- Pressure control for beer transfer: Beer flows from bright tank to filler under tank pressure. Operators adjust transfer pressure according to gauge readings. Stable pressure reduces turbulence and foam, improving filling efficiency.
- Leak detection: If pressure keeps dropping during long-term storage, there is leakage on tank body or connections. Early inspection prevents oxidation and deterioration of the whole batch of beer.
Structural Advantages for Brewery Environment

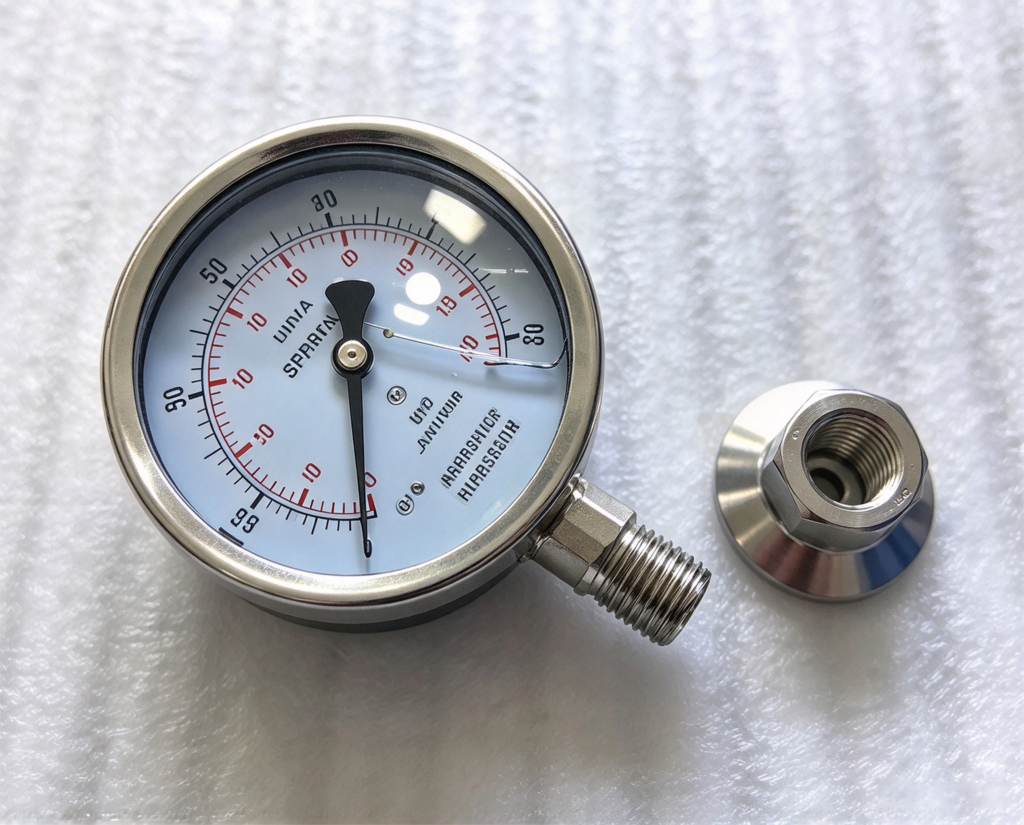

This hydraulic shock pressure gauge uses glycerin damping liquid to absorb vibration and hydraulic shock from pumps and tanks, keeping the pointer stable for easy reading. Wetted parts adopt food-grade stainless steel, resistant to beer, CO₂ and cleaning chemicals. Thread or tri-clamp installation enables simple assembly and disassembly. Multiple pressure ranges are optional: 0~2.5 bar for fermenters and 0~1.0 bar for bright beer tanks.
It adapts well to humid brewery conditions. Fitted with an isolating valve, the gauge can be removed for calibration without emptying the tank, reducing production downtime.
Stable Production & Less Brewery Loss
Fermentation and bright beer storage are critical stages of beer production. Out-of-control pressure can lead to heavy losses. Overpressure damages seals; low pressure brings oxidation, CO₂ escape, poor foam and stale flavor.
Hydraulic shock pressure gauges deliver stable and accurate pressure data, help brewers standardize operation, reduce human error and cut batch waste. Hydraulic shock pressure gauges are basic equipment for standardized brewing, suitable for small craft breweries and large commercial brewing lines.
