Tiantai 4000L Kombucha Brewing Equipment is designed for commercial kombucha production with stainless steel fermentation tanks, precise temperature control, and customized brewing solutions.
Typical 4000L Kombucha Brewing Process
The production process generally includes:
Tea Preparation ā Sugar Dissolution ā Brewing ā Cooling ā Primary Fermentation ā Flavoring ā Secondary Fermentation ā Carbonation ā Filling & Packaging
Tiantai can design the system according to different recipes, including:
- Traditional kombucha
- Fruit-flavored kombucha
- Sparkling kombucha
- Functional fermented beverages
4000L Kombucha Brewing Equipment ā Configuration Overview
| Part 1: Kombucha Brewing Unit | |||
| 1.1 | 4000L Brew Kettle With Bottom Motorized Agitator | 1set | |
| 1.2 | 4000L Hot Water Tank | 1set | |
| 1.3 | Sanitary Centrifugal Pump With VFD | 2pcs | |
| 1.4 | Sanitary Piping | 1unit | |
| 1.5 | Valves and Fittings | 1unit | |
| 1.6 | Work Platform | 1set | |
| 1.7 | 40m2 Plate Heat Exchanger | 1pc | |
| 1.8 | Pipe Filter | 1pc | |
| 1.9 | Sanitary Flexible Hose With Fittings | 2pcs | |
| Part 2: Kombucha Fermentation Unit | |||

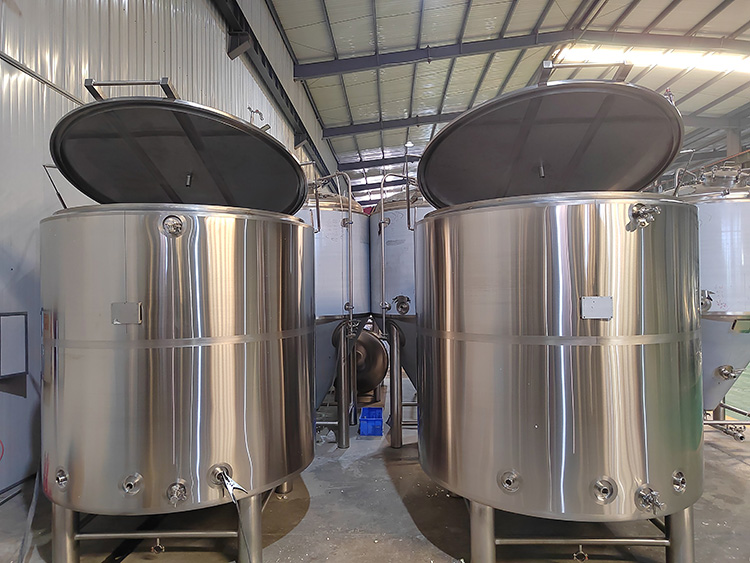

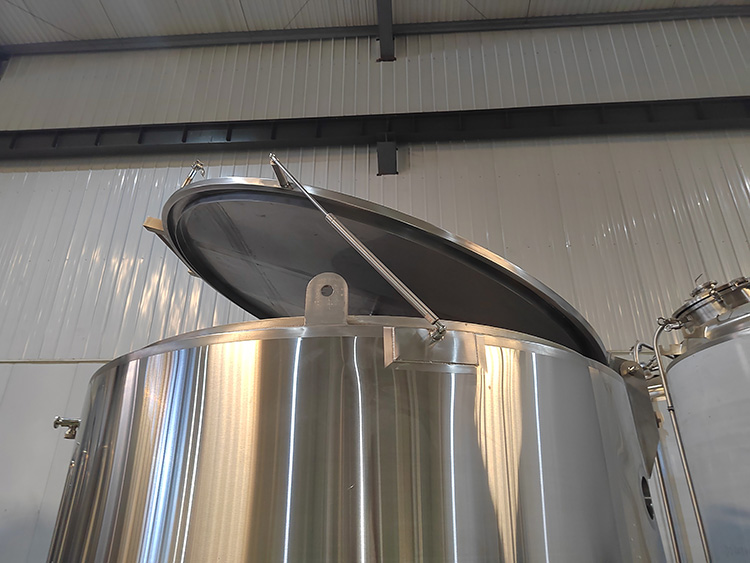

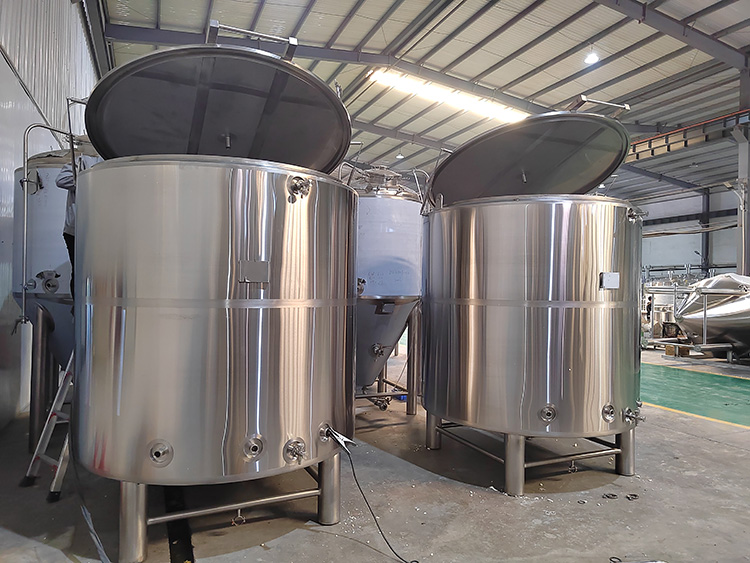

| 2.1 | 4000L 1st Stage Scoby Tank [Open top, atmoshpheric pressure] |
4sets | |
| 2.2 | 4000L 2nd Stage Kombucha Fermentation Tank [Dished top, isobaric pressure ] | 4sets | |
| Part 3: Kombucha Storage Unit | |||
| 3.1 | 4000L Kombucha Storage Tank | 1set | |
| Part 4: Filtration Unit | |||
| 4.1 | Plate-Frame Filter | 1set | |
| 4.2 | Cartridge Bag Filter | 1set | |
| Part 5: Glycol Cooling Unit | |||
| 5.1 | 15P Glycol Water Chiller | 1set | |
| 5.2 | Glycol Water Pipeline & Fittings | 1unit | |
| Part 6: Electric Control Unit | |||
| 6.1 | Brewery Instrumental Control Cabinet | 1set | |
| Part 7: 300L Fixed CIP Unit [Two Tanks] | |||
| 7.1 | 300L Single Wall Caustic Tank | 1set | |
| 7.2 | 300L Single Wall Acid Tank | 1set | |
| 7.3 | Sanitary Centrifugal Pump | 1set | |
| 7.4 | Sanitary Piping | 1set | |
| 7.5 | Valves and Fittings | 1set | |
| 7.6 | CIP Controling Cabinet | 1set | |
| Part 8: Bottle Filling Unit | |||
| 8.1 | 10-Head Semi-Auto Bottle Filling & Capping Machine | 1set | |
Why Choose Tiantai 4000L Kombucha Equipment?
ā Professional Beverage Equipment Manufacturer
With more than 20 years of experience in stainless steel fermentation equipment manufacturing, Tiantai provides reliable solutions for breweries and beverage producers worldwide.
ā Customized Design
Every kombucha project has different requirements. We provide customized solutions including tank dimensions, layout design, cooling capacity, automation level, and production process optimization.
ā Complete Project Support
From initial consultation and equipment design to manufacturing, shipping, and installation guidance, Tiantai supports customers throughout the entire project.
Applications
The 4000L Kombucha Brewing Equipment is widely used for:
- Commercial kombucha production
- Beverage factories
- Craft beverage companies
- Breweries expanding into non-alcoholic beverages
- Functional beverage startups
Start Your Kombucha Production Project
Looking for a reliable 4000L kombucha brewing system? Contact Tiantai today for a customized equipment solution based on your production goals.
