For craft breweries, the brewhouse defines wort quality, while the fermentation tank shapes beer’s final flavor, batch consistency and production efficiency. Many new breweries only focus on tank volume but overlook structural details. Poorly‑designed fermenters bring common troubles: temperature fluctuation, cleaning residue, difficult yeast handling and oxidation during dry‑hopping. A well‑built commercial conical fermenter cuts production troubles and delivers steady flavor for IPA, hazy beer, stout and other beer styles.

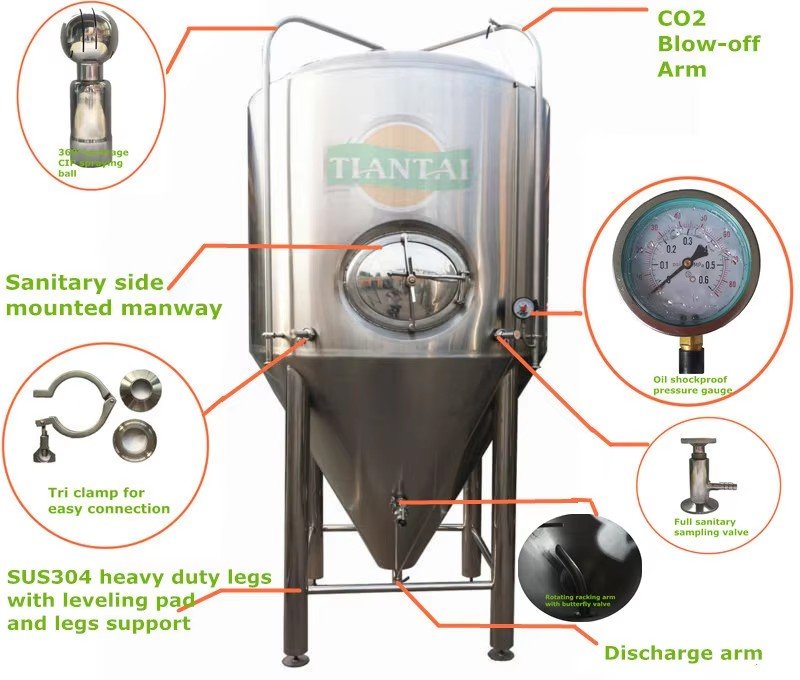

Core Structure & Production Benefits of Tiantai Conical Fermenter
1. Double‑wall Tank With Cooling Jacket for Precise Temperature Control
The fermenter adopts double‑wall construction with insulation layer and cooling jacket. Glycol coolant circulates inside the jacket. Supported by automatic temperature control system, tank temperature stays stable. Whether you brew lager at low temperature or ale at higher temperature, the tank heats up and cools down quickly. It avoids flavor deviation caused by ambient temperature change. Double‑layer insulation also lowers glycol consumption and saves long‑term operating costs.

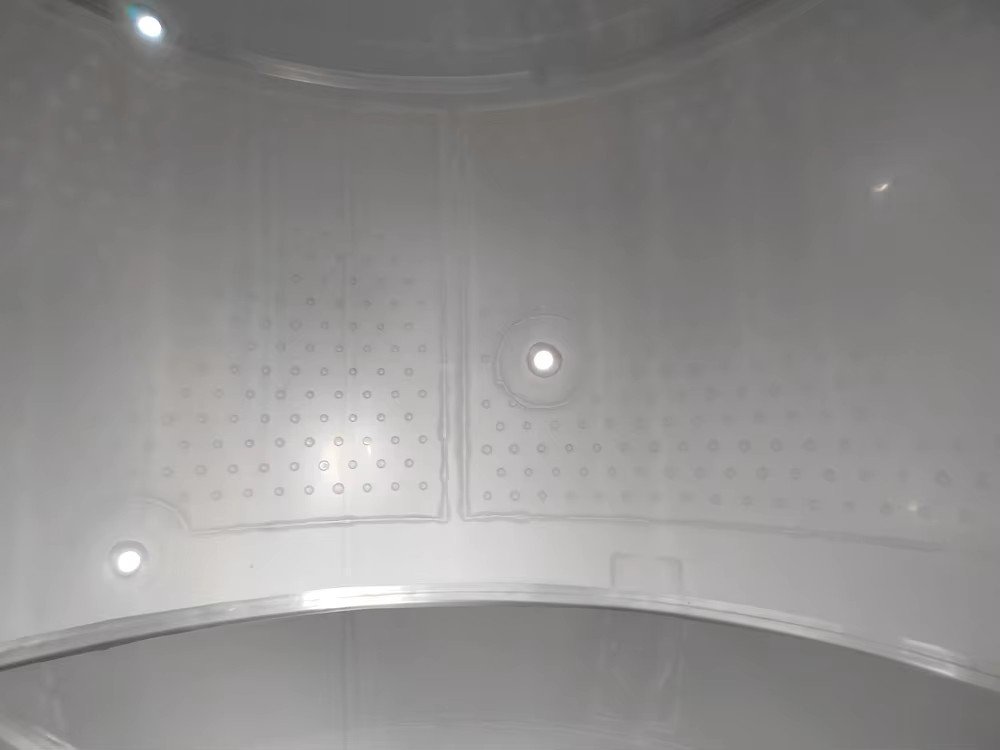

2. 0.4‑μm Internal Polishing & 360‑degree Dead‑zone‑free CIP Cleaning
Inner tank surface is sanitary polished to 0.4 μm. The smooth surface hardly holds wort residue, yeast trub or hop debris. Equipped with rotary CIP spray ball, it delivers full 360° coverage cleaning without manual tank entry. Smooth finish reduces microorganism contamination risk and shortens cleaning time, supporting continuous batch production and meeting food‑grade brewing sanitary standards.
3. 60‑degree Cone Bottom for Convenient Yeast Handling
60‑degree conical bottom is proven design for commercial fermenters. After fermentation, yeast and trub sink down and gather at cone section. Brewers can harvest yeast or discharge waste yeast directly. Trub removal can be finished without beer transfer. It minimizes oxygen exposure. Recyclable yeast helps breweries cut raw‑material cost.

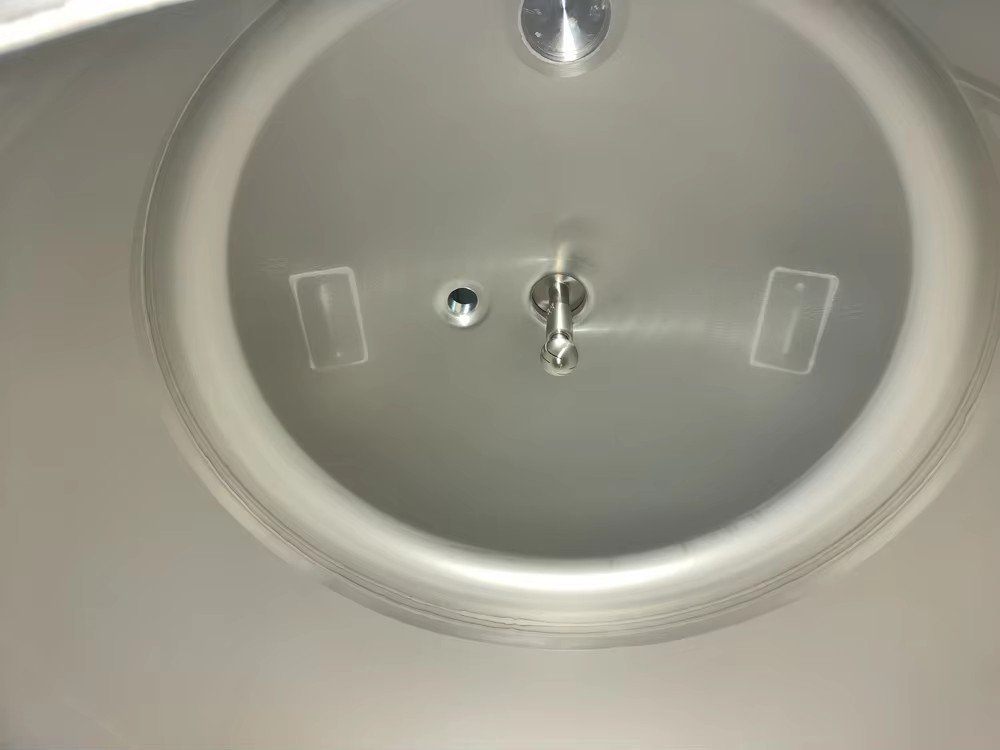

4. Adjustable‑pressure Vessel for Closed Fermentation & Dry‑hopping
This pressure‑rated fermenter supports closed pressure fermentation and in‑tank natural carbonation. Dry‑hopping port is reserved for hop‑gun connection. For IPA and NEIPA production, closed dry‑hopping is realized without opening manhole, preserving fresh hop aroma and avoiding oxidation.
5. Rotatable Horizontal Racking Arm For Gentle Beer Transfer
Rotatable horizontal racking arm allows operators to adjust outlet height. You can draw clear beer from upper liquid layer and stay away from yeast sediment at cone bottom. It prevents stirring up trub during transfer or keg filling, improves beer clarity and eases downstream filtration work.
Do Not Choose Fermenters Only By Volume
When sourcing fermentation tanks, volume is not the only factor. Cooling performance, inner polishing grade, cone angle, pressure rating, racking design and CIP capability strongly affect daily operation. Tanks with same capacity may show huge practical differences due to different configurations.
Tiantai conical beer fermenter integrates double‑wall cooling jacket, 0.4 μm sanitary polishing, 360° CIP cleaning, 60‑degree cone bottom, adjustable pressure, dry‑hopping port and rotatable horizontal racking arm. Built for startup craft breweries and large‑scale brewing projects, it balances sanitation, temperature control and easy operation. Suitable for beer, kombucha and fruit wine fermentation, Tiantai fermenter helps breweries consistently produce high‑quality beverages.
