For fast-growing craft beverage brands and small-scale production plants, this automatic canning line delivers the speed, consistency, and hygiene you need to meet increasing demand. Designed to handle 330ml and 500ml aluminum cans (customizable), this fully automatic solution integrates rinsing, filling, and seaming with higher throughput, precise controls, and compact layout.
Constructed from food-grade 304 stainless steel and optimized for carbonated beverages like craft beer, sparkling water, kombucha, soda, and hard seltzer, this system ensures product quality and shelf life while minimizing oxygen pickup and CO₂ usage.
Key Features
✔ Capacity: 2000–4000 cans/hour (CPH)
✔ Fully automatic 3-in-1 system: rinsing, filling, and seaming
✔ 18-head high-precision filler for faster, consistent volumes
✔ 4-head pneumatic seamer for clean and secure sealing
✔ Hygienic design using food-grade 304 stainless steel
✔ Compatible with 269ml, 330ml, and 500ml cans (customizable)
✔ CO₂ pre-flushing to reduce O₂ pickup and protect freshness
✔ User-friendly PLC control system with touch screen
✔ Compact design for streamlined layout and easy maintenance
Integrated Functions

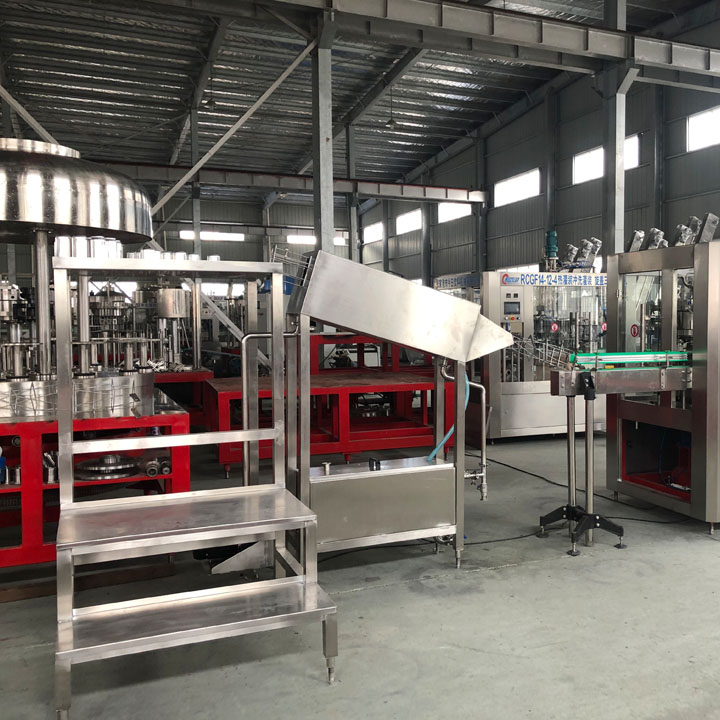

1. Can Rinsing Station
12 stainless steel nozzles for effective internal rinsing
Spray bar length: 1000mm for full coverage
Built-in water recovery tray to reduce waste
Smooth can transportation using stainless steel rod guides

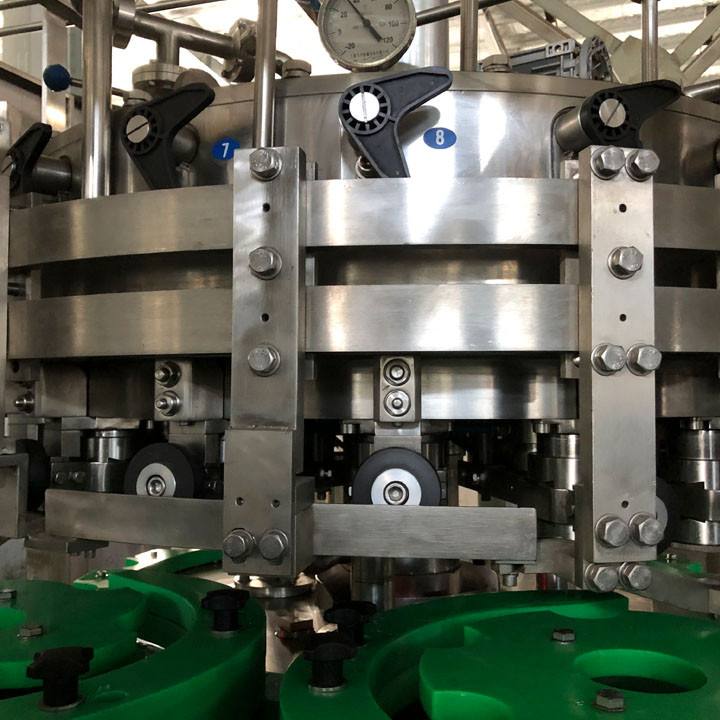

2. Filling Section
18 filling heads for high-speed, foam-free filling
Suitable for lightly to moderately carbonated beverages
Controlled filling pressure: 0.3–0.5Mpa
CO₂ environment in the tank and filling zone to reduce oxygen exposure
Can size compatibility: diameter φ50–φ70mm; height 90–170mm

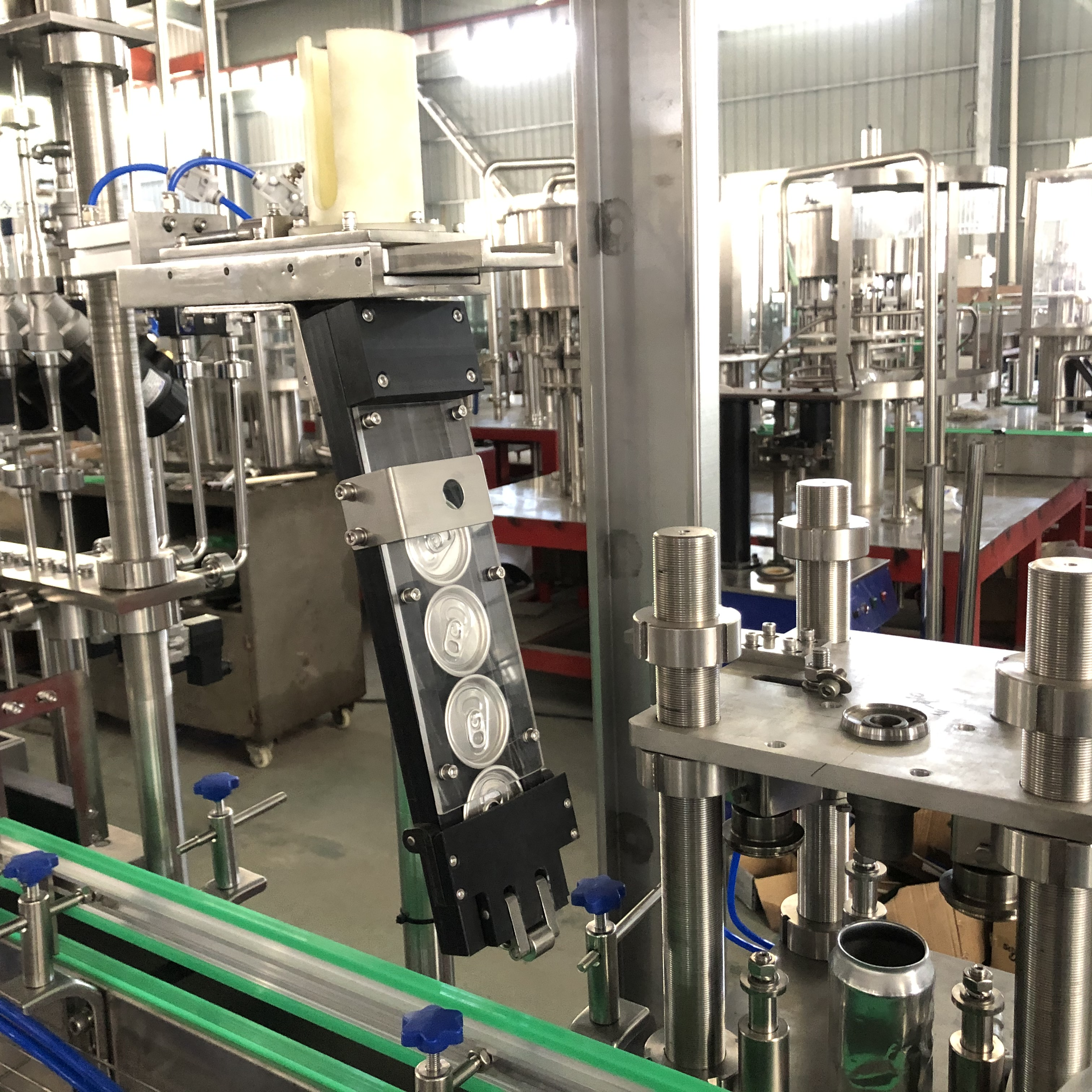

3. Seaming Unit
4 sealing heads with pneumatic pressure control
Compatible with standard 202 can lids (customizable)
High-precision seaming ensures secure, leak-free closure
Seam inspection port for quality control and adjustment
Technical Specifications
| Parameter | Details |
| Capacity | 2000-4000 cans per hour (CPH) |
| Washing heads | 12 |
| Filling heads | 18 |
| Seaming heads | 4 |
| Can Size | 330ml / 500ml (customizable) |
| Can height | 90–170mm |
| Can diameter | φ50–φ70mm |
| Filling pressure | 0.3-0.5Mpa |
| CO₂ content | 8-10g/m³ |
| CO₂ pressure | 0.5-0.6Mpa |
| Control system | PLC + touch screen |
| Dimensions | 3000 × 1900 × 2300 mm |
Optional Upgrades
✔ CO₂ pre-flush and post-fill flushing system
✔ Automatic lid dispenser
✔ Online inkjet date printer
✔ High-speed can drying tunnel
✔ Single-side or wrap-around labeling machine
✔ Rotary accumulation table or buffer conveyor
✔ Remote monitoring and diagnostics system
Application
✔ Craft Beer
✔ Kombucha
✔ Hard Seltzer
✔ Sparkling Water
✔ RTD Coffee & Teas
✔ Carbonated Juices & Soda
Ready to Boost Your Canning Capacity?
Tiantai’s 2000–4000CPH Automatic Canning Line is your reliable partner for scaling up beverage production with professional performance and long-term value. Whether you're upgrading from manual lines or starting a new packaging facility, this system offers the speed, precision, and stability you need.
Contact us now for a tailored proposal and system layout.
