This is Sharon here from Tiantai Brewery Equipment Company.
Happy to share with you that we have this all-packed 200l brewery system just finished manufacturing and ready to be delivered to our customers---Stony Creek Brewing in Australia. As our old customers, they are expanding their business into a further level since last time of collaboration, we feel sincerely happy for them and hope the new equipment will play a good role in their business trip! Now please let us introduce you some more details of this 200l set-up, if you are gathering information or looking for similar size of brewing equipment, feel free to reach back to us anytime at your conveniences, we’d be more than happy to work together with you finding a suitable solution to help your project running, Cheers!

As a turnkey solution brewing project, this is a complete set of 200l brewery system included except for the glycol cooling system that already equipped in our customers’ current set up, components mainly including from malt milling to keg washing machine, etc. We’ll make a detailed list in below for your better information of whole system!

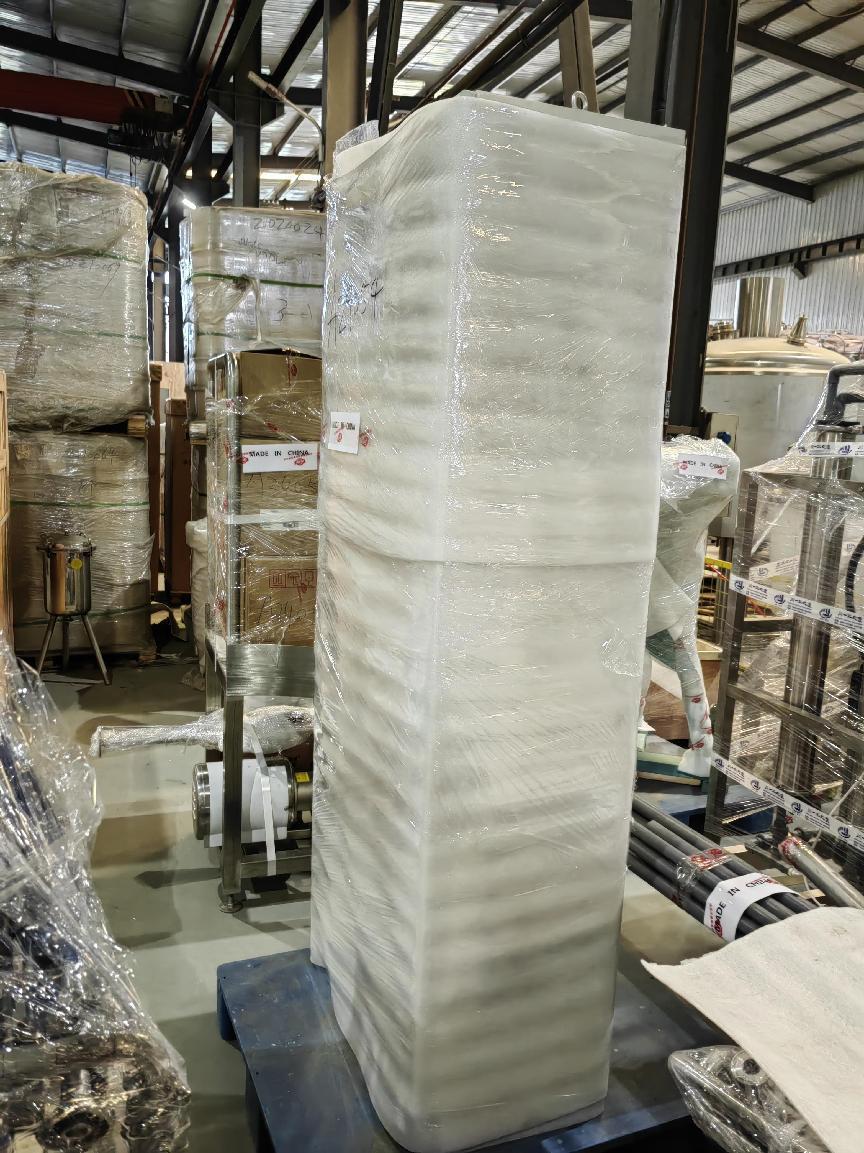

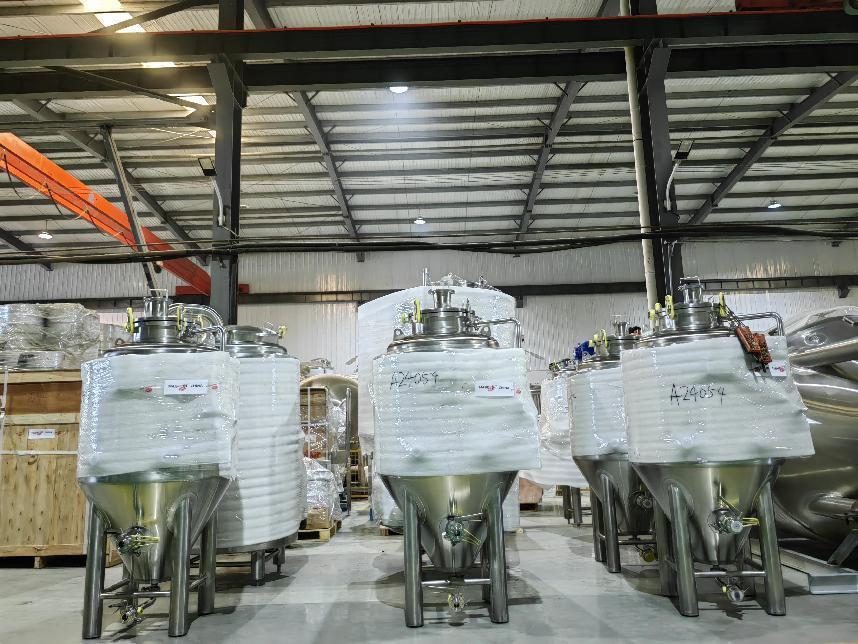

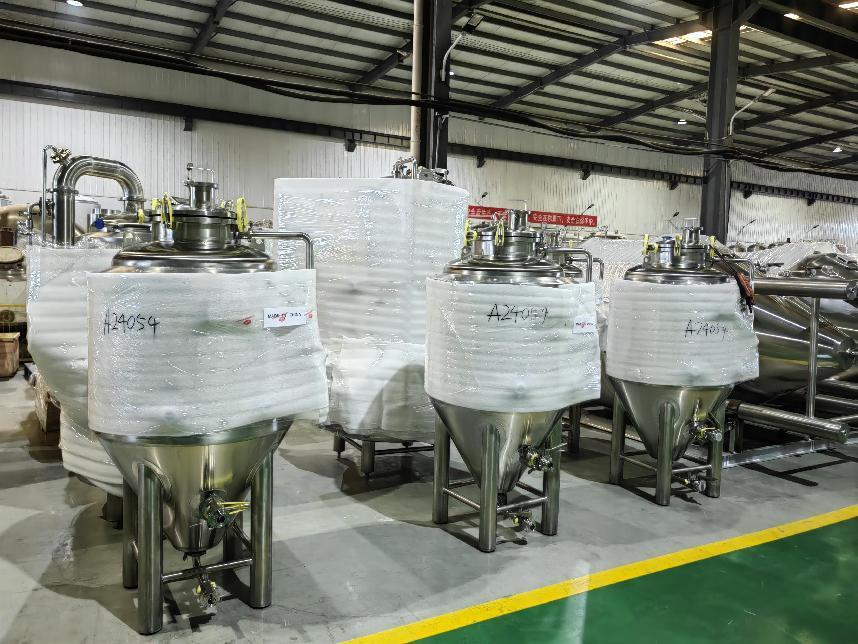

The whole system has been packed and ready to be loaded into containers for shipment a few days later. Turnkey solutions provided for all sizes of brewing project from layout designing, configurations confirming, manufacturing to delivering and installation as well as maintenance. Door to door service is also available to be provided to save your efforts for this as much as possible if required.

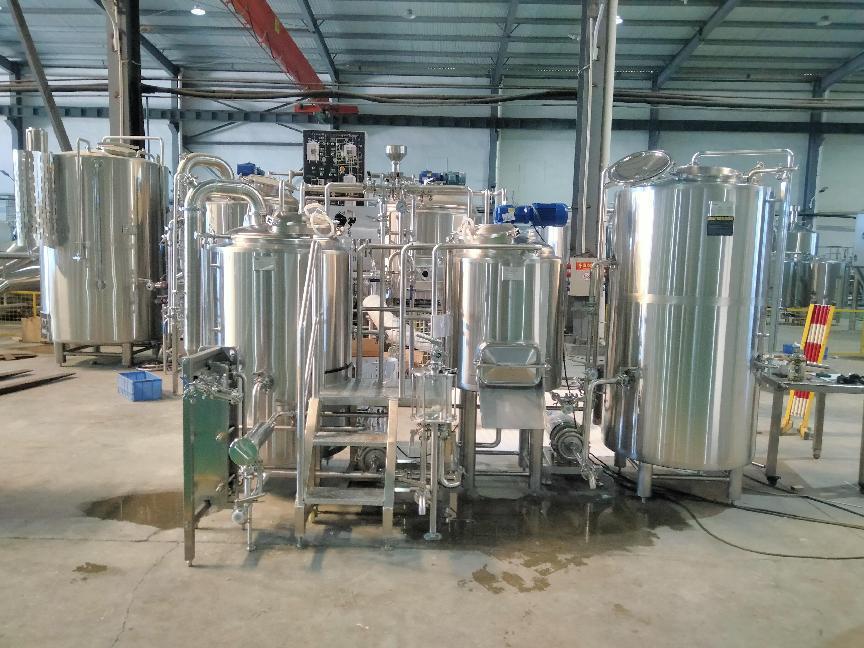

The 200L 2-Vessel Brewhouse
Composed by the iconic structure of Mash/Lauter Tun, Kettle/Whirlpool Tun and Hot Liquor Tank, the HLT is enlarged into 500L to better meet the liquid supply requirements. The brewhouse is designed to be heated by direct fire based on customer’s requests, for safety considerations, we’ve been using the combustion chamber that composed by stainless steel outside skin, perlite insulation, 5mm carbon steel plate and fire-proof cement protective layer, that will be a big help to better control the temperatures which is concerned by most of customers when considering to use direct fire as heating source. The burner is belong to BTG6 Baltur Brand.
Main Components Included in the Brewhouse System:
1) 200L Mash/Lauter Tun, 200L Kettle/Whirlpool Tun, 500L Hot Liquor Tank
2) Non-Slip Working Paltform
3) Sanitary Centrifugal Pump
4) Sanitary Pipeline
5) Manual Water Mixing Station
6) Manual Wort Cooling Station
7) Pipeline Instrument Sensor
8) 25L Glass Wort Grant
9) 2M² Heat Exchanger
10) Pipe Filter
11) Wort Aeration Station
12) 10L Yeast Feeder

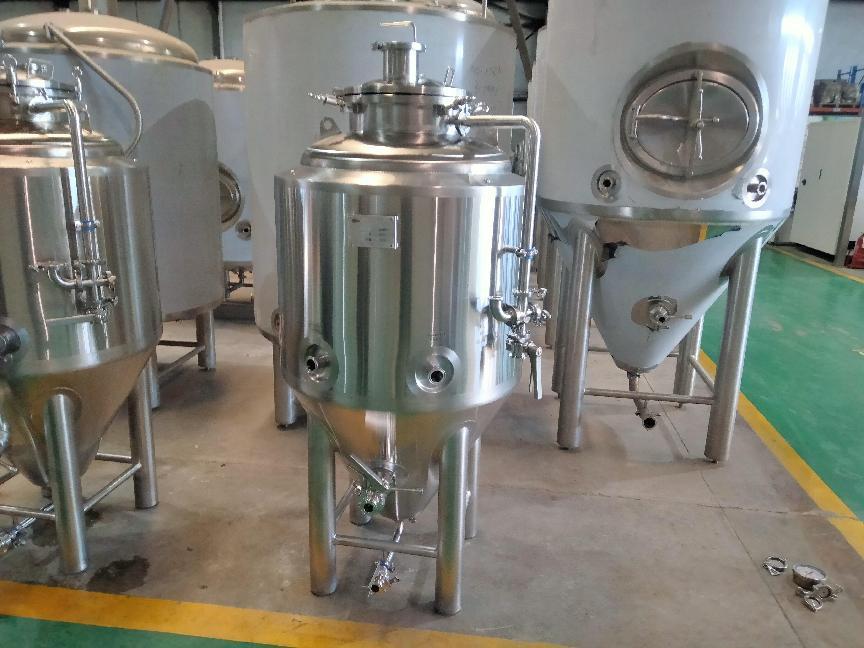

200L Fermentation Tank:
All tanks are configured with adjustable feet for leveling on uneven floor or fine height adjustments. Main fittings equipped for fermenters are :
Carbonation Port
Sampling Port
CIP Cleaning Arm
Rotating Racking Arm
Drainage Port
Hop Pitching Port(5L Hop Pitching Tank Provided)
Spunding Valve, Level Tube Supplied for Special Requirements

Floor Mounted Control Cabinet
Auto, Semi-Auto and Manual Control Cabinet supplied based on personal requirements.

Manual 2 Station Keg Washing Machine
All sizes&types of beer kegs are all available to be supplied if there are any requirements.

RO Water Treatment Machine
500L/Hr RO Water system
Turnkey solutions, customization services or any other technical assistance are all available to be provided to meet your requirements, just feel free to let us know your preferred ideas and we’d be more than happy to work together with you finding a suitable solution to help your project running well!
Any questions or other assistance needed just feel free to reach back to us anytime at your conveniences please, thanks for your interests in our products and we wish all the best with your business!
