Introduction
For brewers and beverage produces, delivering a consistently safe, stable, and great-tasting product is non-negotiable. Pasteurization remains the gold standard for achieving this, effectively eliminating harmful pathogens and spoilage organisms that could compromise quality and safety. Enter the Tunnel Pasteurizer--the workhorse of modern high-volume production lines. This sophisticated system offers a continuous, efficient, and remarkably gentle method to ensure your bottled or canned beer, soda, juice, or RTD beverage reaches consumers in perfect condition, every single time. Discover how this vital piece of equipment can become your silent guardian of quality.




What is a Tunnel Pasteurizer&Why is it Crucial?
A tunnel pasteurizer is essentially a long, enclosed chamber through which filled and sealed containers(bottles or cans) are conveyed on a belt. As they travel through distinct temperature zones, a precisely controlled cascade of water is sprayed over them. The primary mission? To raise the product’s core temperature to a specific target(typically between 60℃ and 75℃), hold it there for an exact duration, and then cool it down efficiently-all while preserving the dedicate flavors and characteristics your customers love. Unlike more severe sterilization methods, pasteurization strikes the perfect balance: lethal to microbes, gentle on your product. It’s indispensable for extending shelf life, ensuring safety compliance, and maintaining consistent sensory quality across vast production runs.



Core Applications: Beyond Beer
While synonymous with brewing(protecting that perfect hop profile and carbonation), tunnel pasteurizers are equally vital for:

² Carbonated Soft Drinks(CSDs)
² Juices and Juice Drinks
² Ready-to-Drink(RTD) Teas and Coffes
² Sports and Functional Beverages
² Dairy-Based Drinks
² Wine Coolers and Flavored Malt Beverages

Inside the Tunnel: Key Components Working in Harmony
Understanding the pasteurizer’s anatomy reveals the precision behind the process:
1. Pre-heating Zone: warm water sprays gently acclimate containers, preventing thermal shock(critical for glass) and preparing the product for the heat to come.

2. Heating/Pasteurization Zone: the heart of the process. Multiple zones apply hot water sprays, meticulously controlled to raise the product to its target pasteurization temperature. Uniform coverage is key.
3. Holding Zone: once at temperature, containers enter this critical section. Maintaining the exact target temperature for a precisely calculated time ensures sufficient microbial reduction(measured in Pasteurization Units-PUs).
4. Pre-cooling Zone: Initial cooling begins with sprays of progressively cooler water, easing the temperature transition.
5. Main Cooling Zone: cold water(often chilled) sprays rapidly bring the product temperature down to near ambient or packaging temperature, halting any further thermal impact on flavor.
6. Conveyor System: a robust, adjustable-speed chain or belt system reliably transports complete, even water coverage over every container for optimal heat transfer efficiency. Recirculation systems collect, filter, temperature-control, and reuse the water.

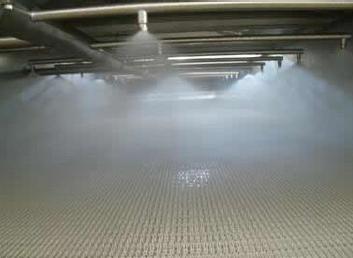

7. Spray System: strategically placed nozzles above and/or below the conveyor ensure complete, even water coverage over every container for optimal heat transfer efficiency. Recirculation systems collect, filter, temperature-control, and reuse the water.



8. Precision Control System: the Brain. A sophisticated PLC/SCADA system continuously monitors temperatures(at multiple points within each zone and often product simulators), controls water flow and heating/cooling sources(steam, refrigeration), adjusts conveyor speed, and often calculated and logs PU vales in real-time. This guarantees process consistency and traceability.
9. Insulated Casing&Frame: stainless steel construction with high-quality minimizes heat loss, enhancing energy efficiency and operator safety.



How it Works: The Gentle Journey to Safety
The pasteurization process is a carefully orchestrated thermal dance:
1. Entry: Filled and sealed containers enter the tunnel;
2. Pre-heat: Gradually warmed to minimize stress and prepare for heating;
3. Heat-Up: Progressively hotter water sprays transfer heat, bringing the product core to the target pasteurization temperature.
4. Hold: Crucial stage! Maintained at the target temperature for the exact time needed to achieve the required lethality(PU value) against target microorganisms.
5. Cool-Down(Staged): Temperature is reduced gradually(pre-cool) and then rapidly(main cool)using controlled water sprays to preserve product quality.
6. Exit: Containers emerge cool, stable, microbiologically safe, and ready for labeling and packaging.
7. Control is King: Throughout the journey, the integrated control system constantly fine-tunes water temperatures and conveyor speed, ensuring every single container receives the precise thermal treatment it needs-no more, no less.


Our Features:
1. Delivering European-Grade Performance at Asia-Friendly Investment
While premium Western brands focus on over-engineering for extremes, we specialize in smart-value engineering: optimizing every component to deliver 95% of the performance at 60% of the cost. Our pasteurizers pass the same stringent tests(CE, ISO22000).

We understand your budget pressures, but never at the expense of quality:
·Core components imported from Germany/Japan (e.g. Siemens PLCs, NSK Bearings, Pneumatic valves)
·Localized manufacturing reduces logistics and import duties

2. Customized Footprint: Precision-engineered dimensions adapt to your facility constraints, maximizing space utilization without compromise.

3. Turnkey Solutions: door to door services provided including installation and training services, life-long after-sales services ensured.

Specification References:

Name: Beer Pasteurizer Tunnel Machine

Working Load: 300-500B/Hr (330ml)

Occupation Area: 6*1.1*1.65m

Bottle Inlet Temperature: 0-4℃

Bottle Outlet Temperature: 25-35℃

Sterilization Temperature: 63-70℃ (Adjust available)

Temperature Pricision: ±1℃

Electricity Source: 3 Phase 220V 60Hz or Customized

Temperature Zone and Parameters:

Temp zone  1    0.8 meter      Water flow  1T/H       +25℃  Temp zone  2    0.8 meter       Water flow  1T/H       +48℃  Temp zone  3    1.2 meter        Water flow  1T/H      +70℃  Temp zone  4    1.2 meter        Water flow  1T/H      +65℃  Temp zone  5    1.2 meter       Water flow  1T/H       +48℃  Temp zone  6    1 meter       Water flow  1T/H       +25℃

Convey Belt Speed: 110-553mm/min

Heating Steam Pressure: 0.2Mpa

Hot Recycle Water Volume: 6M3

Sterilization Tunnel Length: 3.8m

Sterilizing Section Length: 2.4m

Sterilization Width: 1.2m

Warm Water Pump: 1t/h (4 units)

Hot Water Pump: 10t/h (2 units)

PLC Control Cabinet, Pneumatic Diaphragm Valve:DN25

Steam Pressure: 0.2-0.4Mpa

Material: SUS304 2mm Thick for Frame, Plastic Chain for Belt

Heat Exchanger Configured



Ready to Elevate Your Beverage Production?
Ensure every bottle and can leaving your facility embodies quality and safety. Discover how Tiantai's advanced tunnel pasteurization solutions can optimize your process and protect your brand.

Contact us today for:
·A detailed technical specification sheet
·A personalized quote
·A consultation with our pasteurization experts
·References from satisfied customers

Any other interested information just feel free to reach to us please!
Sharon
E: [email protected]
Phone: 0086 156 7882 2391
Let’s brew confidence, together.
