In a complete craft beer brewing system, most brewers pay attention to big main equipment, such as mash tun, whirlpool tank and plate heat exchanger. However, there is a small but very important part on the pipeline ā the Y-type pipeline filter. It works like a guard for the pipeline system. It catches impurities and keeps the whole brewing line running stably. It is a necessary accessory for brewery pipelines.
What is a Y-Type Pipeline Filter

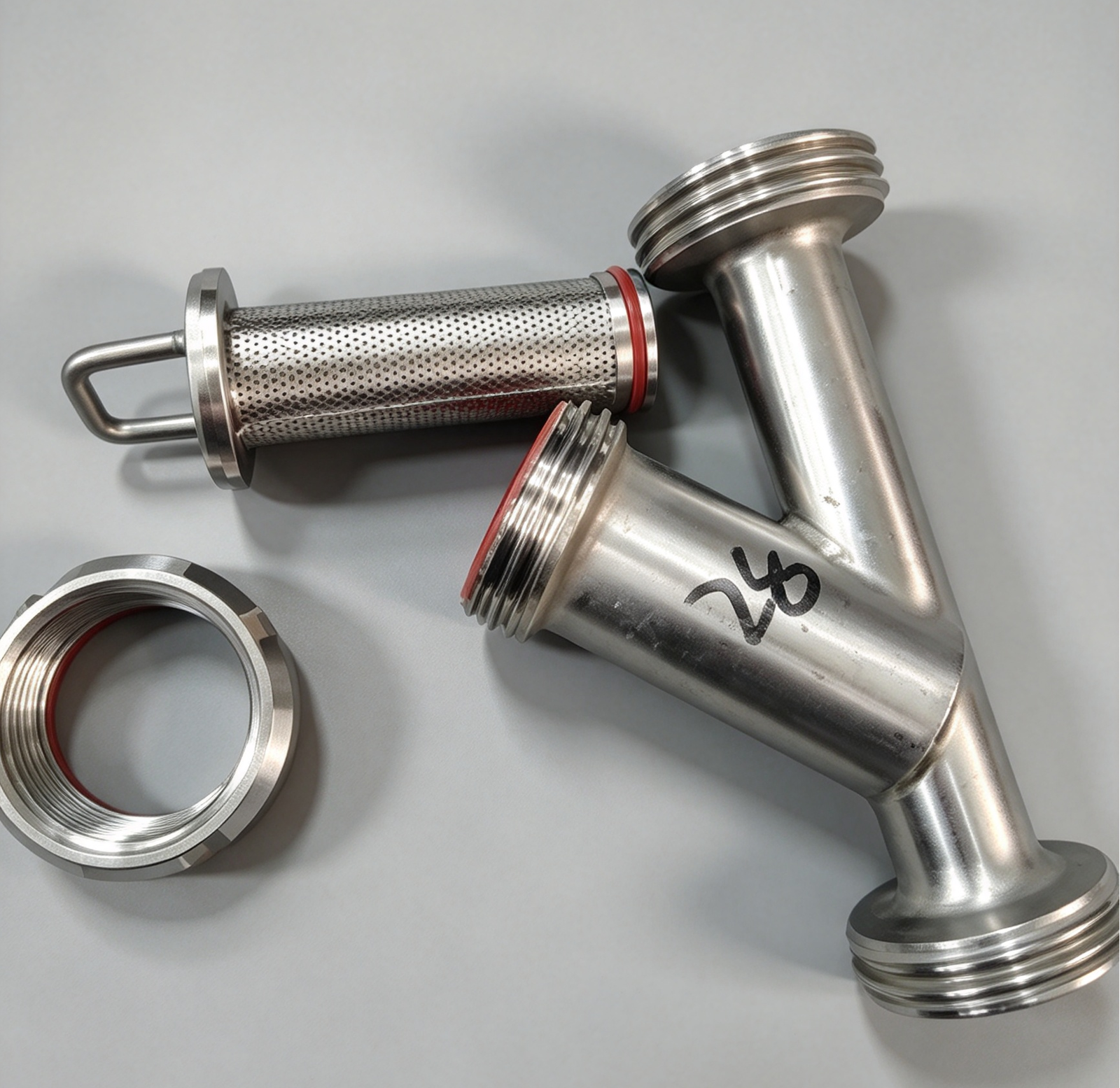

It gets the name because its shape looks like the letter Y. It is a coarse filter installed on pipelines before pumps, valves and heat exchangers. The main body is made of food-grade 304 or 316L stainless steel, with removable stainless steel mesh inside. When wort or cleaning water flows through the filter, solid particles are trapped by the mesh, and clean liquid flows to the next step.
Main Function: Block Impurities and Protect Downstream Equipment
During beer production, wort often contains hop scraps and malt husk pieces. Pipes may also have welding slag or rust particles after long-time use. If these hard particles flow directly into pumps, valves and plate heat exchangers, many problems will happen. Hard particles wear pump impellers and damage seals. Small waste may stick inside valves and cause leakage. They can also block heat exchangers and make cleaning harder. The Y-type filter catches these solid impurities in advance. It stops particles from entering precision equipment. It reduces equipment wear, lowers the chance of unexpected shutdown and saves maintenance cost.
Stabilize Brewing Process and Improve Wort Quality
Besides protecting equipment, the filter also helps keep good wort quality. During wort transfer, large waste like hop residue and malt shells are trapped first. Fewer solid pieces go into cooling and fermentation steps. It reduces the risk of cloudy beer and strange flavors, and keeps stable taste of final beer. It also works in CIP cleaning pipelines. It catches dirt in cleaning liquid to keep pipelines smooth, to meet food hygiene standards for brewing.
Structure Advantages: Easy Operation and Maintenance
Tiantai sanitary Y-type pipeline filter has a compact size, so it fits small installation space in breweries. It uses quick clamp connection for fast assembly and disassembly. The filter mesh can be taken out separately for cleaning. You do not need to take apart the whole pipe. Mesh with different sizes can be customized for wort transfer or CIP circulation. It creates low flow resistance and will not slow down liquid transfer much. There is a drain port at the bottom for simple waste discharge and less manual work.
Application and Selection Tips
Y-type pipeline filters are widely used in craft beer lines. They can be installed before wort transfer pumps, cooling water pipes, CIP pipelines, and the transfer pipe between mash tank and whirlpool tank. It is used for coarse filtration of large solid impurities as the first protection. For fine filtration, it can work together with other precision filters. Tiantai can customize sanitary Y-type filters according to pipe size, medium and flow rate. It fits 500L, 1000L, 2000L and other craft brewery projects.
A reliable brewing system needs every accessory to work well. Though the Y-type pipeline filter is small, it acts as a protection wall for the whole production line. It removes solid impurities in advance, protects expensive brewing equipment, stabilizes wort quality and cuts downtime. Choose Tiantai sanitary Y-type pipeline filter to build the first safety barrier for your brewery.
