Product Overview

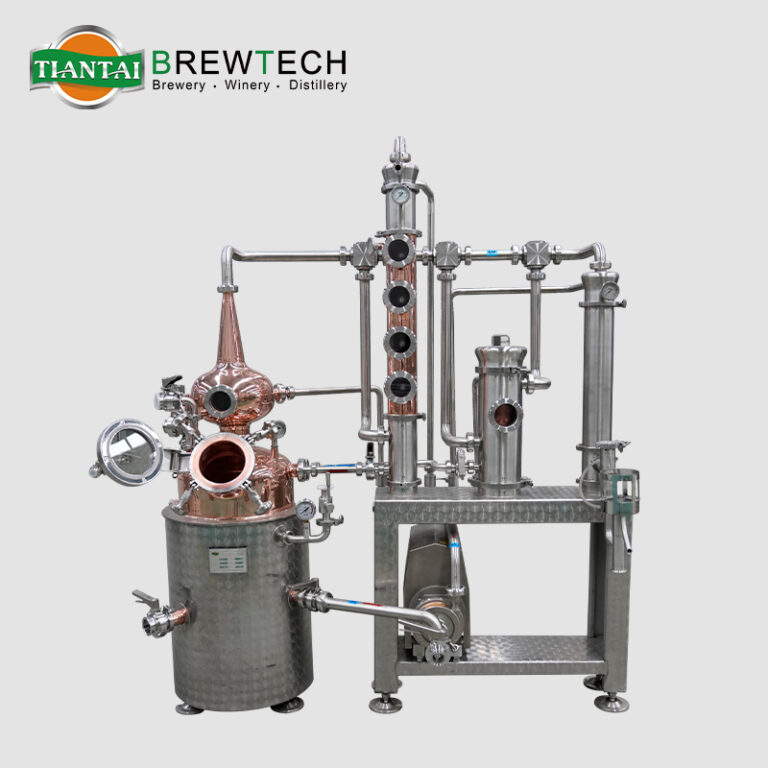

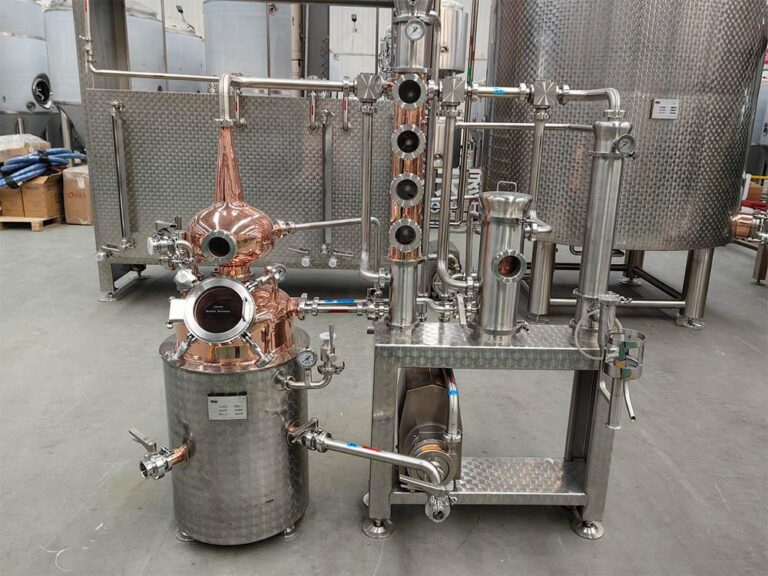

Our 50L distillation unit is expertly engineered for craft distilleries, pilot-scale production, and recipe development. Combining efficient output with a compact footprint, it is the ideal solution for small-batch spirits production and process optimization. Suitable for gin, whisky, rum, brandy, vodka, and other distilled spirits, this system delivers dependable performance, precise operation, and exceptional spirit purity.
Technical Specifications of 50L Alcohol Distillation Equipment
| Item | Technical Specification |
| Effective Volume | 50 Liters |
| Daily Output Approx | 5ā10 Litres |
| Heating Method | Electric / Steam (optional) |
| Power Supply | 220V / 380V / Custom |
| Still Pot | Interior Shell: TP2 Red Copper;Ā Exterior Shell: SUS304 stainless steel; Steam Heated |
| Helmet | TP2 Red Copper |
| Swan Neck and Lyne Arm | TP2 Red Copper |
| Dephlegmator | 304 Stainless steel (TP2 Red Copper is optional) |
| Distill Column | TP2 Red Copper, 4 Trays (Customized) |
| Gin Basket | 304 Stainless steel (TP2 Red Copper is optional) |
| Condensor | 304 Stainless steel (TP2 Red Copper is optional) |
| Parrot Outlet | 304 Stainless steel (TP2 Red Copper is optional) |
| Alcohol Vapor Pipeline&Valves | 304 Stainless steel (TP2 Red Copper is optional) |
| CIP Pipeline & Valves | 304 Stainless steel |
| Supporting Frame | 304 Stainless steel |
| Control Cabinet | Instrumental Control Panel (PLC is optional) |
| Spirit Receiver Tanks | 304 Stainless steelĀ Foreshots head,Ā Middle cut andĀ Feints Receiver Tank |
Key Features
- Mirror-polished stainless-steel boiler paired with a premium copper column for superior flavor refinement.
- Choice of bubble-cap or sieve-plate column configurations to suit your process requirements.
- Dephlegmator with sight glasses for precise reflux and proof control.
- Integrated parrot outlet for continuous alcohol-strength monitoring.
- Built-in CIP system for fast and hygienic cleaning.
- Complete safety package including pressure gauges and a safety valve.
- Manual, semi-automatic, or PLC-based control options available.
Optional Auxiliary Equipment
A complete turnkey solution can include grain milling, mash and lauter systems, hot and cold water tanks, fermentation vessels, glycol tanks and chillers, and CIP units to ensure efficient, continuous operation.
| Equipment Name | Description |
| Mill | Crushing Malt, Raw Grain etc |
| Mash tun or Mash/Lauter tun | Malt/Grain Mashing and Lautering |
| Hot Water Tank | Supplying Hot Water for Mashing, Sparging, Cleaning etc |
| Cold Water Tank | Supplying Cold Water for Wort Cooling, Beer Cooling, Distilling etc |
| Fermentation Tank | Fermenting wort/wash |
| Glycol Water Tank | Cooling Cold Water and Beer etc |
| Glycol Chiller | Chilling Glycol Water |
| CIP | Cleaning |
Why Choose This System?
The 50L Copper Still combines versatility, premium craftsmanship, and scalability in a single platform. Its customizable design, flexible distillation technology, and comprehensive installation and training support make it an outstanding choice for both new and established distillers.
Tell us your preferred spirit, automation level, production capacity, and facility dimensions, and our team will tailor the ideal distillation solution for your operation.
