500L Distillation Equipment/Copper Pot Still & Column Still

Distillery Equipment

The 500L distillation unit is expertly engineered for craft distilleries, pilot-scale production, and recipe development. Combining efficient output with a compact footprint, it is the ideal solution for small-batch spirits production and process optimization. Suitable for gin, whisky, rum, brandy, vodka, and other distilled spirits, this system delivers dependable performance, precise operation, and exceptional spirit purity.

Distillation Capacity	500L
Applications	Whiskey, Vodka, Brandy, Rum, Gin, Fruit Spirits
Heating Method	Steam, Electric, or Direct Fire
Still Type	Pot Still / Pot Still with Column (Optional)
Material	SUS304 Stainless Steel & Copper (Customize)
Control	PLC or Manual
Power Supply	Customized to Local Standards

The modular design of 500L distillation equipment allows flexible configuration, including different column heights, plate quantities, heating methods, and automation levels, making it an ideal solution for both startup and expanding distilleries.

500L Distillation Equipment Technical Specifications

500L Hybrid Distillation Unit
1	500L Copper Still Pot [Electric Heated]	1set
2	Copper Helmet	1set
3	Copper Swan Neck and Lyne Arm	1set
4	Stainless Steel Dephlegmator	1set
5	Copper Distill Column [4 Trays]	1set
6	Stainless Steel Gin Basket	1set
7	Stainless Steel Condensor	1set
8	Parrot Outlet	1set
9	Stainless Steel Alcohol Vapor Pipeline & Valves	1set
10	Stainless Steel CIP Pipeline & Valves	1set
11	Stainless Steel Supporting Frame	1set

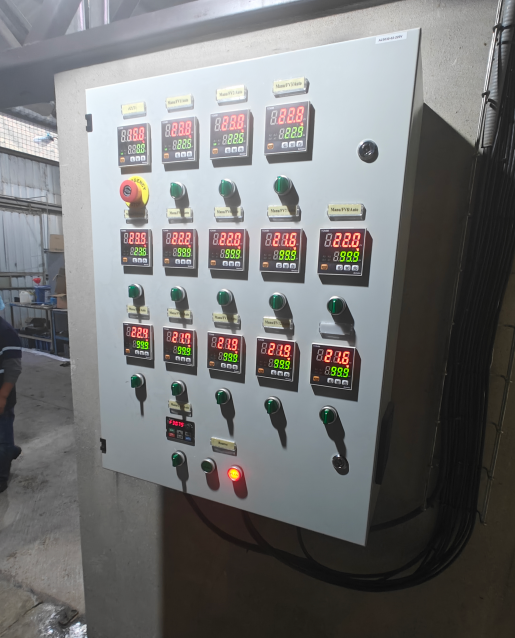

12	Stainless Steel Control Cabinet	1set
13	[Optional] Stainless Steel Spirit Receiver	0unit

Main Features

Distillation Equipment Traditional Copper Pot Design
Copper removes sulfur compounds naturally, producing cleaner aromas and smoother spirits.

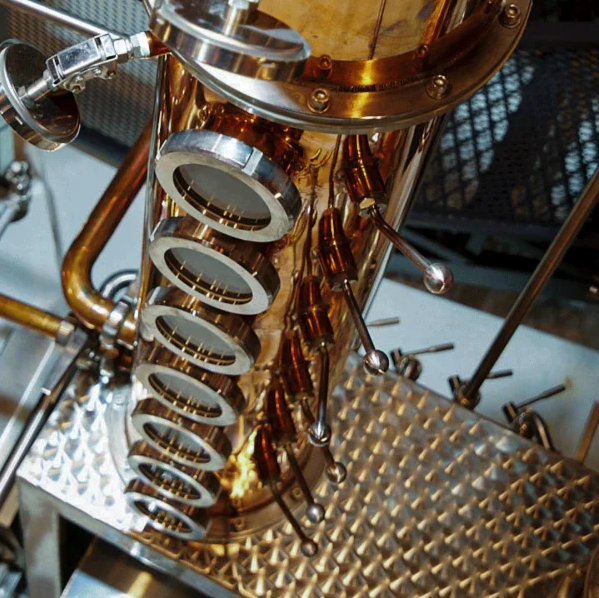

Flexible Column Configuration
Bubble plate columns can be customized according to different spirits and alcohol purity requirements.
Multiple Heating Options
Available with steam heating, electric heating, or direct fire heating.
Easy Cleaning
Designed with CIP cleaning connections for faster maintenance.
Food Grade Materials
All wetted parts are manufactured from SUS304 stainless steel and premium copper.
Customized Engineering
Every project can be customized according to your production capacity, building layout, and spirit type.

Suitable For

The 500L distillation equipment is ideal for producing:

Whiskey
Gin
Vodka
Rum
Brandy
Fruit Brandy
Herbal Spirits
Essential Oils
Other customized design for products available

Get A Quote for Distillation Equipment

Looking for a professional 500L Distillation Equipment/Copper Pot Still & Column Still?
Contact Tiantai now for customized distillery solutions and complete turnkey support.

Related cases

So far, we have supplied high-quality brewery equipment & distillery equipment & wine equipment & other beverage production equipment to over 3,500 projects across 106 countries and regions – and are growing by at least 200 clients every year.
Each project reflects our dedication and expertise, as well as the careful consideration and trust of our customers.
Below are a few selected cases.To explore more inspiring real-world examples,please visit our Cases page via the navigation menu.

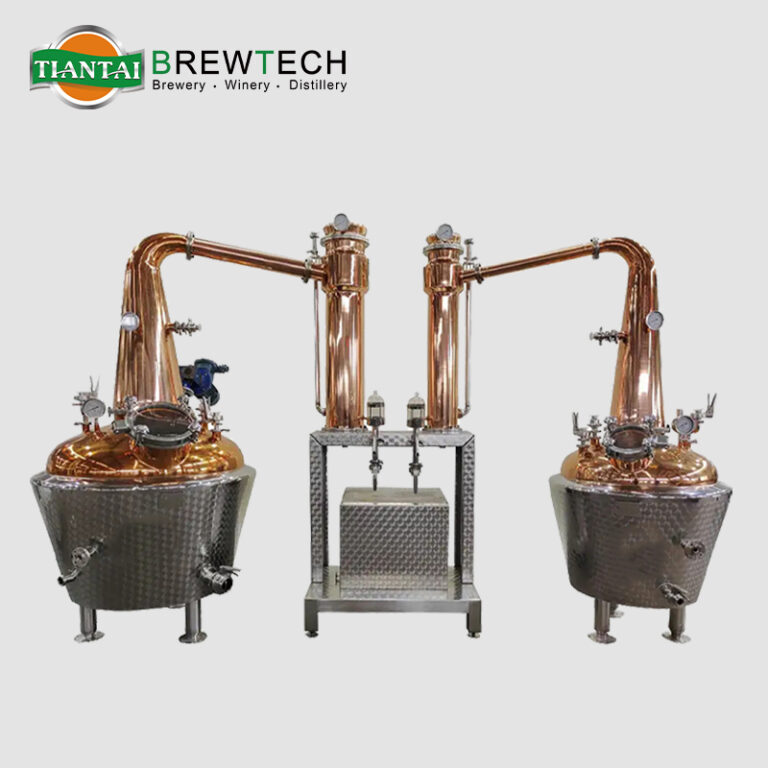

300L Double Pot Whisky Still Project by TIANTAI

500L Distillery Equipment in USA -- Old Station 31 Spirits

500L Distillery Equipment Successfully Installed in UK

2000L Distillery Equipment Distillation Still Project Well Installed-Trackside Distillery in Canada

500L Rum Distillery Equipment Successfully Installed in Ecuador -- Hacienda Zhumir Destilería

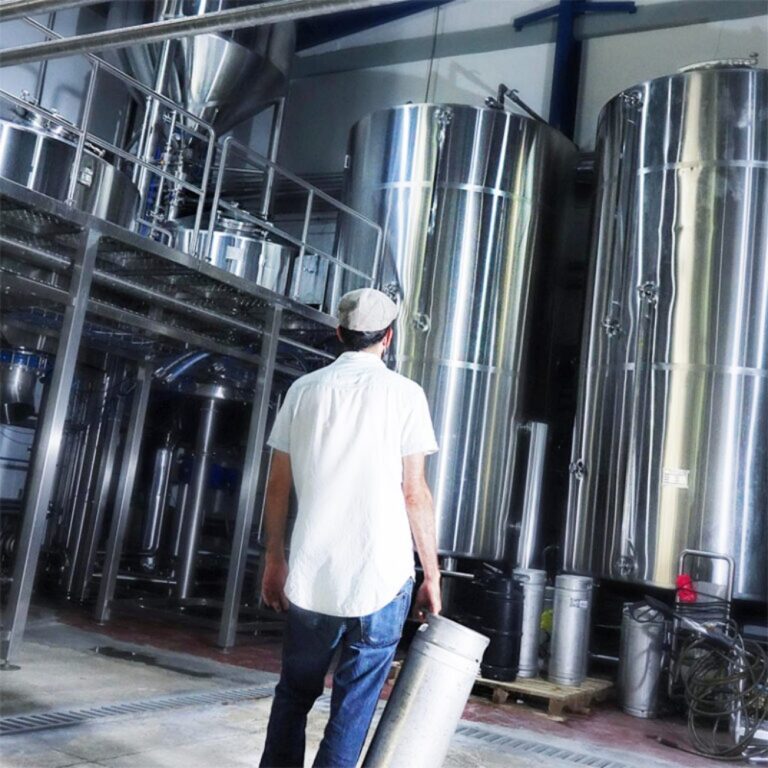

5000L brewery equipment project for Cerveza Canita in the Dominican Republic
