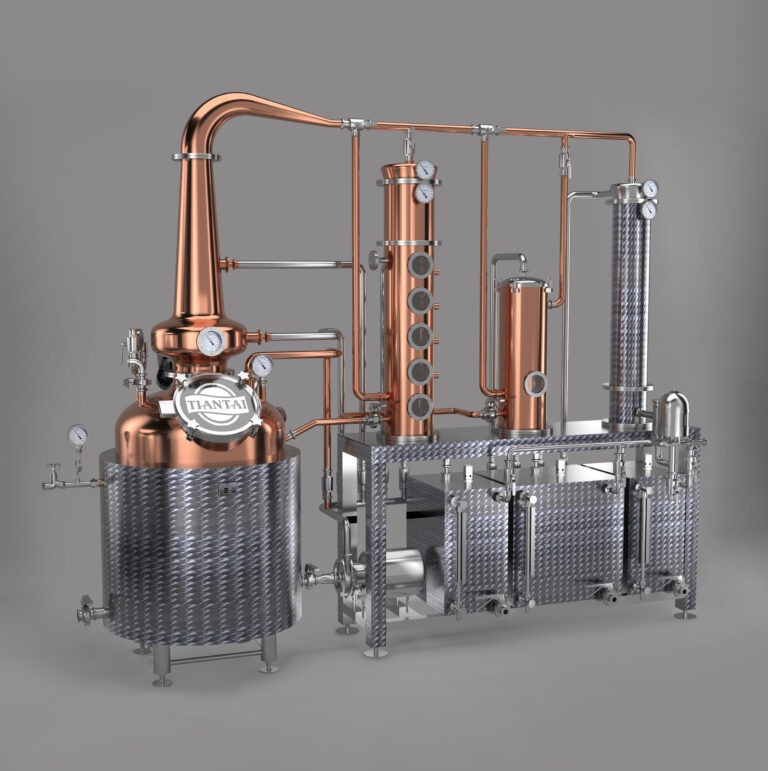

200L Distillation Equipment/Copper Pot Still & Column Still

Distillery Equipment

The 200L Distillation Equipment is a compact commercial distillation system designed for craft distilleries, pilot production, research laboratories, distilling schools, and premium spirits producers.

This system combines a traditional copper pot still with an optional column still, allowing distillers to produce a wide variety of spirits including whiskey, gin, vodka, rum, brandy, fruit spirits, herbal spirits, and other specialty liquors.

Manufactured with food-grade stainless steel and premium copper components, the equipment delivers excellent heat transfer, efficient sulfur removal, stable reflux control, and outstanding spirit purity.

Whether you are starting a new craft distillery or developing new recipes, the 200L distillation system offers excellent flexibility, consistent performance, and room for future expansion.

200L Distillation Equipment Technical Specifications

200L Standard Distillation Equipment Unit
1	200L Copper Still Pot [Electric Heated]	1set
2	Copper Helmet	1set
3	Copper Swan Neck and Lyne Arm	1set
4	Stainless Steel Dephlegmator	1set
5	Copper Distill Column [4 Trays]	1set
6	Stainless Steel Gin Basket	1set
7	Stainless Steel Condensor	1set
8	Parrot Outlet	1set
9	Stainless Steel Alcohol Vapor Pipeline & Valves	1set
10	Stainless Steel CIP Pipeline & Valves	1set
11	Stainless Steel Supporting Frame	1set
12	Stainless Steel Control Cabinet	1set

*Specifications and components are customizable.

Main Features

Distillation Equipment Traditional Copper Pot Design
Copper removes sulfur compounds naturally, producing cleaner aromas and smoother spirits.
Flexible Column Configuration
Bubble plate columns can be customized according to different spirits and alcohol purity requirements.
Multiple Heating Options
Available with steam heating, electric heating, or direct fire heating.
Easy Cleaning
Designed with CIP cleaning connections for faster maintenance.
Food Grade Materials
All wetted parts are manufactured from SUS304 stainless steel and premium copper.
Customized Engineering
Every project can be customized according to your production capacity, building layout, and spirit type.

Suitable For

The 200L distillation equipment is ideal for producing:

Whiskey
Gin
Vodka
Rum
Brandy
Fruit Brandy
Herbal Spirits
Essential Oils
Other customized design for products available

Get A Quote for Distillation Equipment

Looking for a professional 200L Distillation Equipment/Copper Pot Still & Column Still?
Contact Tiantai now for customized distillery solutions and complete turnkey support.
