At Tiantai Solutions, we blend tradition with innovation to deliver precision-engineered gin distillation systems that transform botanicals into extraordinary spirits. Whether you are craft distillery or an established brand, our customizable solutions help to make your ideas into reality and make your product stands apart.

Architecture of Gin Stills: Precision-Engineered for Every Distilling Style

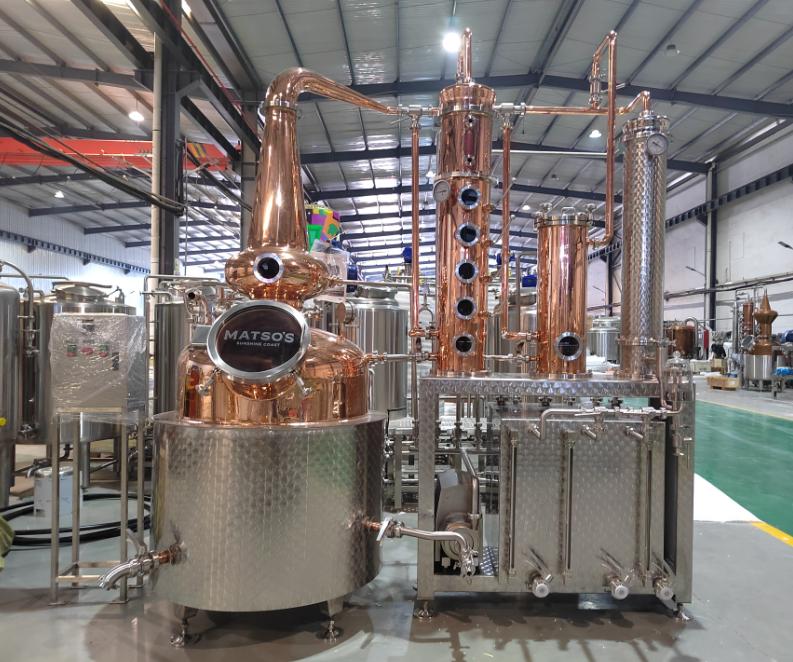

1. Traditional Column Gin Still (For Grain-to-Gin Production)

Main Components:
² Still Pot (Perlage Outside+Copper Inside, Agitator configured)
² Copper Helmet+Swan Neck
² Reflux Column
² Gin Basket
² Condenser
² Spirit Receiver
² CIP Pump

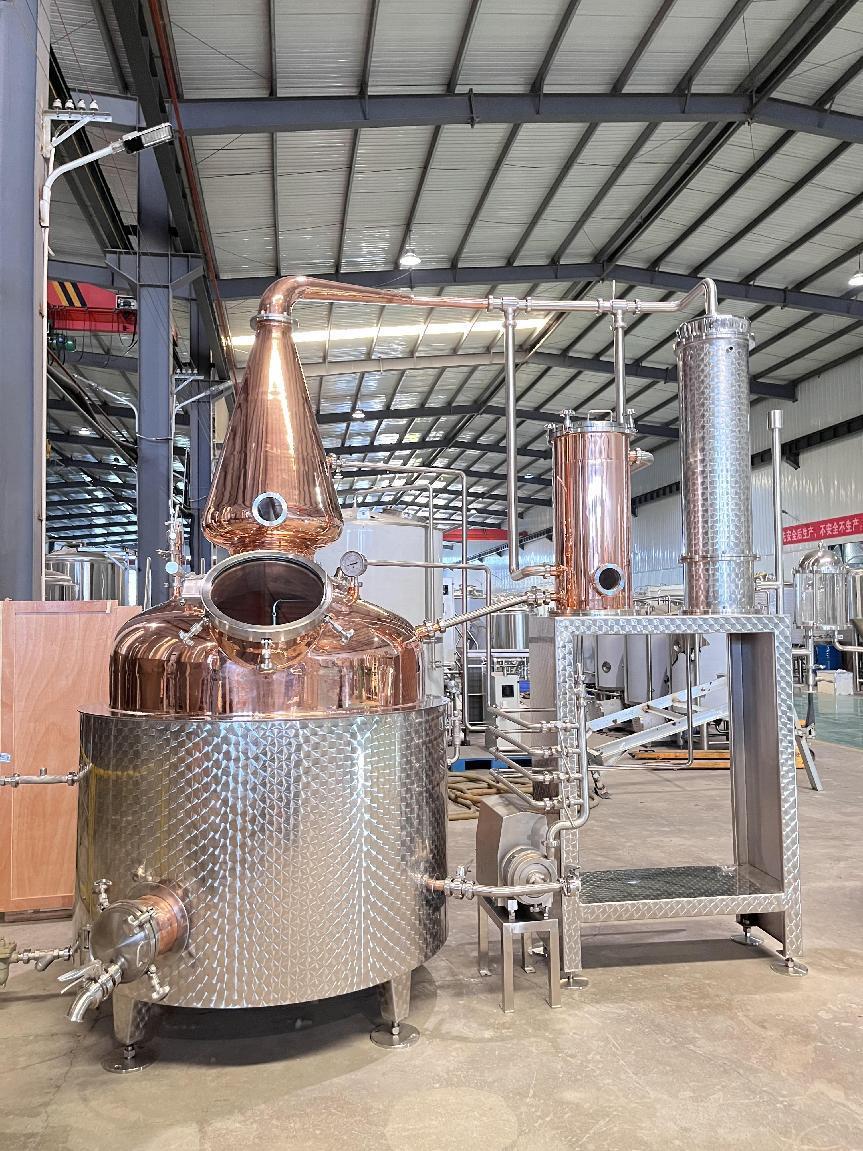

2. Pot Still with Gin Basket&Condenser (For Neutral Spirit Infusion)
Direct vapor path from boiler to condenser suitable for distilling based on neutral alcohol.




Heating Source for Gin Distillers

Steam and electric heating available to be equipped for different sizes of distillers.

Electric heating adopts water-jacket heating craft ensures gentle, uniform heat distribution for any batch size to eliminate scorching and uneven heating.


Material Selection

When selecting a gin still, the equipment materials is another factor that most clients would consider about. While traditional copper stills are iconic in the distilling word, modern stainless steel stills offer a practical alternative-especially when working with neutral alcohol bases.

1. Why Copper Stills?

Chemical interaction: copper reacts with sulfur compounds, removing harsh off-notes and creating smoother spirits.

Thermal Conductivity: even heat distribution prevents hot sports during long distillation runs.

Tradition&Aesthetics: the classic for artisanal gin brands.

2. Why Stainless Steel Stills?

Neutrality: since the base spirit is already purified, copper’s reactive properties are less critical.

Durability: resists corrosion, requires minimal upkeep, and is ideal for high-volume production.

Cost-effective: lower initial investment and longer lifespan with proper care.

3. Hybrid Solution: Balancing Tradition and Practicality

Copper Pot+Stainless Gin Basket+Condenser: retains copper benefits while reducing cost.

Other customize solutions available to be provided based on personal preferences, contact us with your ideas and we’ll do what we can to support.

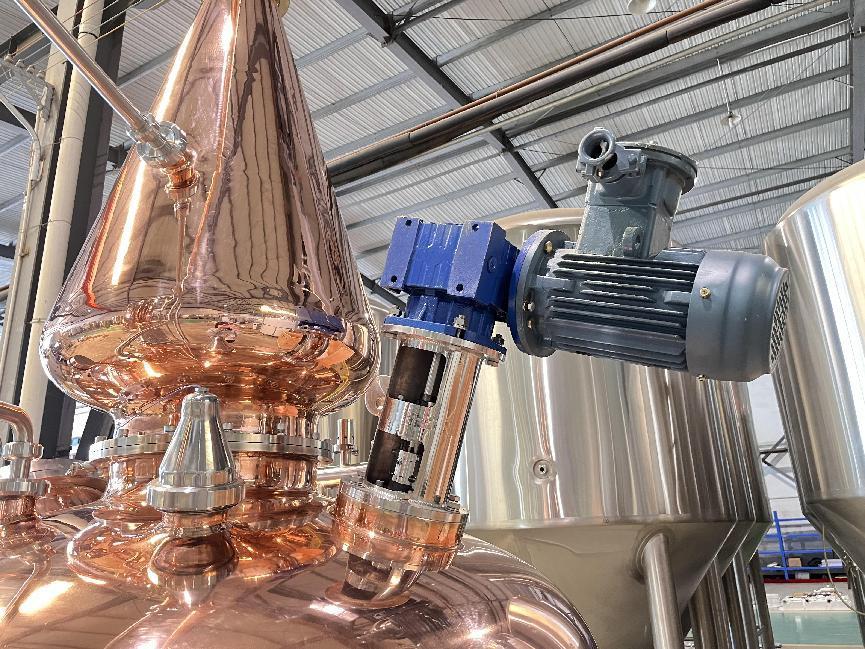

Explosion-proof motors as standard configurations with certifications provided.
